203SMTP09 BRN

Name: 203SMTP09 BRN
Brand: Regal Rexnord
SKU: 203SMTP09 BRN
Price: 8,226.06 USD
Availability: OutOfStock

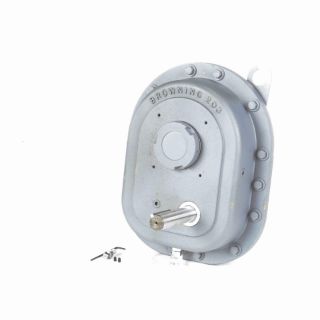

Actual Product May Vary From Image

Product Details

Manufacturer:

Regal Rexnord

Manufacturer part number:

PD0002

CBT Inventory

Vendor Inventory

Availability:

Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

$8,226.06 / EA

Description

Brand Name

Browning®

Type

Type SMTP

Description

Shaft mount reducers are enclosed helical gear reducers with a hollow output. They are mounted directly on the input shaft of the driven machine and are supported by the shaft and torque arm arrangement or motor mount frame. This eliminates the need for additional components to transmit torque from the reducer to the equipment.

Browning® TorqTaper® Plus Shaft Mount Reducer, Type SMTP, 9:1 Gear Ratio, 1 hp, Solid Shaft Input, Tapered Bore Output, 1.25 in Dia x 5.31 in L Input, 2-3/16 in Output, 17 rpm Output Maximum Speed, 1750 rpm Input Maximum Speed, 36.013 in-lb Input/3707.29 in-lb Output, 5.26 in Centre Distance, 80 % Efficiency, Synthetic/Mineral Oil Lubrication, Cast Iron, 12.88 in L x 13.85 in W x 16.16 in H

Application

Aggregate and Cement, Agriculture, Grain, Minerals and Mining, Unit Handling, Water and Wastewater

Standards

AGMA Standard

Features

Unique, patented single bushing mounting system
Tapered stabilizer ring minimizes wobble and resists fretting corrosion
End cap seals quill end from contamination
Industrial strength seal systems, patented barrier seal system includes standard double-lip oil seals with v-ring face seal, grease packed labyrinth and external flinger
Exclusive Taper Bushing, Single TorqTaper Bushing installs from either side of the unit for easy on - easy off mounting, with stabilizer ring
Standard Bearings, Commercially available Tapered Roller Bearings provide maximum overhung load capacity
Commercially available double lip seals ride on plunge ground shafts, with exclusive barrier seal arrangement
Options and Accessories, Complete range of motor mounts, belt guards, backstops, and screw conveyor drive options

Specifications

Centre Distance:	5.26 in
Country of Origin:	US
Dimensions:	12.88 in L x 13.85 in W x 16.16 in H
Efficiency:	80 %
Gear Ratio:	9:1
Horsepower:	1 hp
Input Maximum Speed:	1750 rpm
Input Size:	1.25 in Dia x 5.31 in L
Input Type:	Solid Shaft
Lubrication Type:	Synthetic/Mineral Oil
Material:	Cast Iron
Output Maximum Speed:	17 rpm
Output Size:	2-3/16 in
Output Type:	Tapered Bore
Torque Rating:	36.013 in-lb Input/3707.29 in-lb Output
