203VV TKN

Product Details

Manufacturer:
Manufacturer part number:
203VVZ3FS50000
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.

Description

Brand Name

Timken®

Type

Light Round Bore

Description

Bearings in the 200 series bearings feature a close dimensional balance between bore, outside diameter and width. These characteristics make them well-suited for a broad range of applications involving light to medium loads combined with relatively high-speeds. Wide-type 200 series rubber seal(W200PP) and mechani-seal(W200KLL) bearings are made with standard bores and outside diameters, but in widths equal to the corresponding sizes of double-row bearings. This series offers a larger support area for shaft and housing contact and extra space for lubricant.

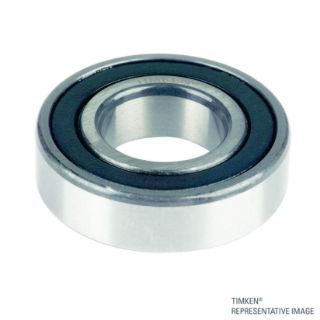

Timken®, 203VVZ3FS50000, Deep Groove Radial Ball Bearing, Light Round Bore, Series: 200, 17 mm Bore, 40 mm OD, 1 Rows, 12 mm Width, Double Seal Closure, 2380 lb Dynamic/1070 lb Static Load, Steel Bearing, FKM Seal, 11050 rpm Maximum, -50 to 120 deg C, Uncoated

Application

Agricultural, Automotive, Chemical, General Industrial and Utilities

Standards

ABEC 1 Certified

Features

  • Conrad-type bearing is well-balanced, with deep races and uninterrupted race shoulders
  • Excellent, general purpose bearing
  • Capacity to carry radial and thrust in either direction or combined loads
  • Electric motor quality for applications where quietness is a requirement

Specifications

Bearing Material:Steel
Bore Diameter:17 mm
Cage Material:Steel
Closure Type:Double Seal
Country of Origin:US
Finish:Uncoated
Load Capacity:2380 lb Dynamic/1070 lb Static
Maximum Speed:11050 rpm
Number of Rows:1
Outside Diameter:40 mm
Seal Material:FKM
Series:200
Temperature Rating:-50 to 120 deg C
Width:12 mm

Products Specifications

Bore Size
17 mm
Brand Name
Timken
Outside Diameter
40 mm
Width
12 mm
