204 KD 4 SS FB KOP

Product Details

Manufacturer:
Manufacturer part number:
2434785
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.

Description

Brand Name

Kop-Flex®

Type

Finished Bore Single Flex

Description

KD® disc couplings are specifically designed to accommodate general purpose drive system applications. These include the following: centrifugal pumps, compressors, generators, cooling towers, machine tools, printing machines, pulp and paper machines. KD® couplings transmit torque. They also provide for angular and axial misalignment between shafts with a specific configuration. That configuration is comprised of shaft mounted hubs connected through flexible disc packs with spacer or sleeve assemblies. All KD® couplings use stainless steel discs as flexible members, providing high strength and good corrosion resistance. The streamline disc pack design results in the reaction load on equipment bearings being minimized. These disc pack couplings are inherently self-centering, additional provision for limited end float is not required. Most disc packs are unitized and self-locking nuts are provided. This simplifies installation and replacement.

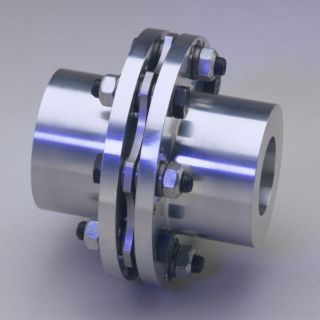

Kop-Flex® KD® Disc Coupling, Finished Bore Single Flex, Series: KD4, 1 to 3 in Bore, 6.38 in OD, 5.26 in Overall Length, 2 Standard Hub, 4.32 in Dia Hub, 2.38 in Length Through Bore, 36000 in-lb Continuous/6000 ft-lb Peak Torque, 13000 rpm (Not Balanced) Maximum

Application

Aggregate and Cement, Coal Power Generation, Cranes, Hoists, Food, Forestry, HVAC, Marine, Metals, Minerals, Mining, Oil, Gas, Pulp, Paper, Turbo Machinery, Unit Handling, Water, Wastewater and Wind Power Generation Industries

Standards

API 610

Features

  • Piloted flange
  • Standard disc couplings, no lubrication
  • Transmits torque through thin scalloped flexible disc pack
  • Single flex disc couplings for angular misalignment applications
  • HT (High Torque) disc packs for medium and heavy duty applications
  • Unitized disc packs for ease of maintenance, replaceable without moving the connected equipment
  • Typically used at each end of a floating shaft
  • Heavy duty, small to large sizes
  • Carbon steel hub

Specifications

Bore Diameter:1 to 3 in
Country of Origin:US
Hub Size:4.32 in Dia
Hub Type:2 Standard
Length Through Bore:2.38 in
Maximum Speed:13000 rpm (Not Balanced)
Outside Diameter:6.38 in
Overall Length:5.26 in
Series:KD4
Torque Rating:36000 in-lb Continuous/6000 ft-lb Peak
