204KRR2 TKN

Name: 204KRR2 TKN
Brand: Timken
SKU: 204KRR2 TKN
Price: 67.19 USD
Availability: OutOfStock

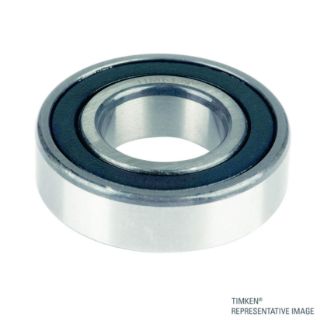

Fafnir® 204KRR2C1 200 Hex Bore Non-Relubricatable Radial Deep Groove Ball Bearing, 0.7961 in Dia Bore, 1.8504 in OD, 1 Row, 0.689 in W, 3190 lb Dynamic/1480 lb Static Load

Manufacturer: Timken

Manufacturer part number: 204KRR2C1

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$67.19

Qty:

Product Details

Brand Name

Fafnir®

Type

Hex Bore Non-Relubricatable

Description

Hex bore bearings are designed for either outer or inner ring rotation in low-speed, moderately loaded applications such as farm machinery and conveyors. Their chief advantage is ease of mounting. Except for axial positioning by adjacent parts, no collars, setscrews or other external parts are required to lock the inner ring to the hex shaft.

Fafnir® Radial Deep Groove Ball Bearing, Hex Bore Non-Relubricatable, Series: 200, 0.7961 in Bore, 1.8504 in OD, 1 Rows, 0.689 in Width, Double Seal Closure, 3190 lb Dynamic/1480 lb Static Load, Steel Bearing, Rubber Seal, Steel Cage, 5220 rpm Maximum, -30 to 275 deg F, Uncoated

Application

Agricultural Implements and Conveyors

Standards

ABEC 1 Certified

Features

Tolerances of the hex bore are suitable for mounting on cold rolled hex shafting
Utilizes the R-type shroud seal

Specifications

Bearing Material:	Steel
Bore Diameter:	0.7961 in
Cage Material:	Steel
Closure Type:	Double Seal
Country of Origin:	US
Finish:	Uncoated
Load Capacity:	3190 lb Dynamic/1480 lb Static
Maximum Speed:	5220 rpm
Number of Rows:	1
Outside Diameter:	1.8504 in
Seal Material:	Rubber
Series:	200
Temperature Rating:	-30 to 275 deg F
Width:	0.689 in
