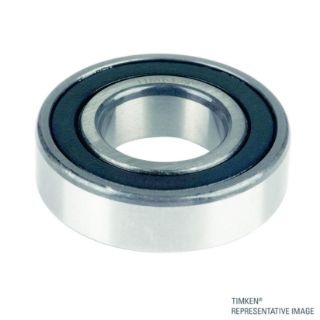

204KTT TKN

Product Details

Manufacturer:
Manufacturer part number:
204KTTZ22-P
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.

Description

Brand Name

Timken®

Type

Light Round Bore

Description

Bearings in the 200 series bearings feature a close dimensional balance between bore, outside diameter and width. These characteristics make them well-suited for a broad range of applications involving light to medium loads combined with relatively high-speeds. Wide-type 200 series rubber seal(W200PP) and mechani-seal(W200KLL) bearings are made with standard bores and outside diameters, but in widths equal to the corresponding sizes of double-row bearings. This series offers a larger support area for shaft and housing contact and extra space for lubricant.
Timken®, 204KTTZ22-P, Deep Groove Radial Ball Bearing, Light Round Bore, Series: 200, 20 mm Bore, 47 mm OD, 1 Rows, 21 mm Width, Double Seal Closure, 3190 lb Dynamic/1480 lb Static Load, Steel Bearing, Felt Seal, 7310 rpm Maximum, -50 to 120 deg C, Uncoated

Application

Agricultural, Automotive, Chemical, General Industrial and Utilities

Standards

ABEC 1 Certified

Features

  • Permits certain design economies, but cannot be assumed to be suitable for all conditions of service
  • In many cases, they are supplemented by adjacent parts in the application for adequate bearing protection in small equipment
  • Suggested for effective grease retention and exclusion of foreign matter
  • Electric motor quality for applications where quietness is a requirement

Specifications

Bearing Material:Steel
Bore Diameter:20 mm
Cage Material:Steel
Closure Type:Double Seal
Country of Origin:US
Finish:Uncoated
Load Capacity:3190 lb Dynamic/1480 lb Static
Maximum Speed:7310 rpm
Number of Rows:1
Outside Diameter:47 mm
Seal Material:Felt
Series:200
Temperature Rating:-50 to 120 deg C
Width:21 mm

Products Specifications

Brand Name
TIMKEN CORPORATION
