2060B18 MSG

Product Details

Manufacturer part number:
2060B18
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 2-4 days.
Estimated dates are contingent upon manufacturer stock.

Description

Brand Name

Martin

Type

Type B Single Strand Double Pitch Reboreable

Description

Double pitch sprockets have rollers of the same diameters and widths as American standard roller chains of one half the conveyor chain pitch. Engaged by every other tooth, double duty sprockets have two teeth per chain pitch. During each revolution only half the teeth function effectively. Sprockets with odd numbers of teeth will allow any given tooth to engage only on every other revolution, automatically increasing sprocket life. Double duty sprockets with even number of teeth may be manually advanced one tooth periodically to increase sprocket life.

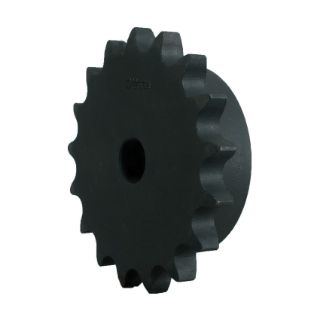

Martin Roller Chain Sprocket, Type B Single Strand Double Pitch Reboreable, 3/4 to 2-9/32 in Bore, 4.7 in OD, #2060 Chain, 18 Teeth, 1-1/2 in Pitch, 4.386 in Pitch Diameter, 3.3438 in Diameter Hub, 1-1/4 in Length Through Bore, Steel

Application

For use with double pitch chains

Standards

ANSI Specified | B29.1 - 1975

Features

  • Manufactured of high carbon steel
  • Precise machining and processes ensure consistent finish and high quality

Specifications

Bore Diameter:3/4 to 2-9/32 in
Chain Size:#2060
Country of Origin:US
Hub Diameter:3.3438 in
Length Through Bore:1-1/4 in
Material:Steel
Number of Teeth:18
Outside Diameter:4.7 in
Pitch:1-1/2 in
Pitch Diameter:4.386 in
