20616R FER

Product Details

Manufacturer:
Manufacturer part number:
20616R
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Expected Leadtime 15 days
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

Mersen

Type

Open Style

Description

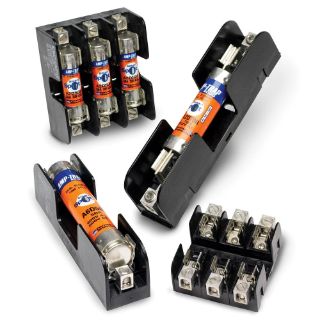

MERSEN class R fuse blocks accommodate 250 and 600 V power fuses. A choice of screw, pressure plate, box and special order stud connectors fit a wide range of stranded or solid copper or aluminum wire. Insulators are either molded glass-filled polycarbonate (GFPC) or phenolic with verified dielectric strength in excess of 2500 V. 30, 60 and 100 A fuse blocks feature a unique adder block which can be snapped onto 1-, 2- or 3-pole blocks to form multi-pole segmented blocks of as many poles as desired. All fuse clips are made of high conductivity tin plated copper, with a choice of spring reinforced or non-spring reinforced clips in 30 and 60 A. Clips 100 A and above are spring reinforced.
Mersen Fuse Block, Open Style, 250 VAC, 60 A, 1 Pole, 1 Phase, Class: R, Screw, Threaded Mount, For Use With: A2D-R, A2K-R, TR-R Fuse, GFPC

Standards

RoHS Compliant | UL 4248-12 (Class R) Guide IZLT File No. E52283 | UL Guide IZLT2, File No. E52283 Recognized | CSA C22.2 Class 6225-01 File No. 32169_0_000, Class 6225 File No. 32212 | CE Certified

Specifications

Amperage Rating:60 A
Class:R
Connection Type:Screw
Country of Origin:MX
Material:GFPC
Mounting Type:Threaded
Number of Phases:1
Number of Poles:1
Suitable For Use With:A2D-R, A2K-R, TR-R Fuse
Voltage Rating:250 VAC
