206Q140H5 012 MOR

Raider® Plus worm gear reducers represent the most flexible worm gear product in the power transmission solutions portfolio. With a large variety of add-on accessories, the Raider® Plus line of worm gear reducers is a problem solver. Four unit styles form the basis of this vast product offering. These are the universal style ("U" style, shaft input) with an output shaft and the C-face style ("Q" style, input quill) with an output shaft. Both the "U" and "Q" styles are also available with hollow outputs. The Raider® Plus worm gear reducer is designed as an industry interchange. It is dimensionally interchangeable with the major industry competitors.

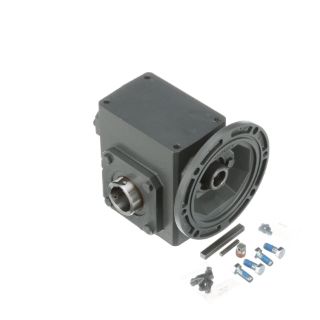

Morse® Raider® Plus Worm Gear Reducer, Single Reduction Standard, 5:1 Gear Ratio, 1 hp, C-Face Quilled Input, Hollow Output, 7/8 in Dia Input, 3/4 in ID Output, 350 rpm Output Maximum Speed, 1750 rpm Input Maximum Speed, 131.81 in-lb Input/350 in-lb Output, 2.06 in Centre Distance, 3/16 x 3/32 in Input/1/4 x 3 in Output Keyway, 80 % Efficiency, Polyglycol Oil Lubrication, Direct/Floor Mount, Cast Iron, 8.07 in L x 6 in W x 6.94 in H
