207002A01F120 WOO

Brad® Mini-Change® connectors are the standard by which all miniature connectors are measured. First introduced in 1968, the Mini-Change® connector pioneered the market for rugged, sealed connectors in industrial applications. These connectors provided the first quick-connect alternative to hard-wiring. Mini-Change® connectors are available in a wide variety of circuits and configurations, with pole configurations available in 2 through 12, 14 and 19. With Mini-Change® connectors, industrial device wiring is easier to install and maintain. To ensure a consistent, low resistance connection, the patented Quad-Beam™ female contact is used. Connectors are sealed to provide IP67 protection. An anti-vibration feature prevents the coupler from loosening, even under extreme conditions.

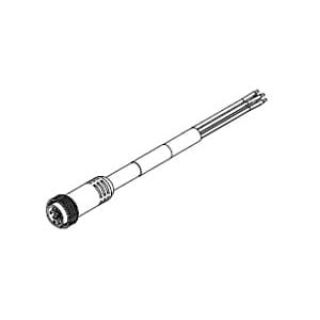

Brad® Mini-Change® Woodhead® Cordset, A-Size/B-Size/C-Size Single Ended, Series: 130007, Straight Male x Pigtail Connector, 1-1/8 in Connector, PVC Connector, 16 AWG STOOW Cable, 3.66 m Cable Length, PVC Cable, 7 Pole, Single Keyway, 600 VAC/VDC, 8 A, White/Black Trace/Black/White/Red/Orange/Blue/Green/Yellow Wire Pin, NEMA 6P NEMA Rating
