20CIF06 BSF

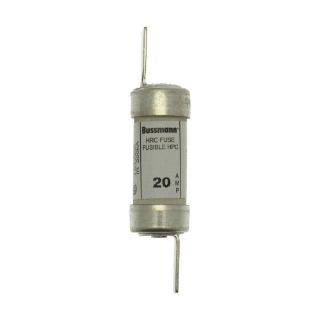

Picture of 20CIF06 BSF
Actual Product May Vary From Image

Product Details

Manufacturer:
Bussmann
Manufacturer part number:
20CIF06
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
Availability:
Expected Leadtime 28 days
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$82.11 / EA

Description

Brand Name

Bussmann

Type

Canadian

Description

Eaton's Bussmann British standard fuses can be used in multiple applications; industrial, utility, street lighting and domestic. Full range of rated current, voltage available as well as compatible fuse holders. They meet the BS88 part 1 and 2 and IEC 60269-1 and -2 standards.
Bussmann HRC Fuse, Canadian, 20 A, 24.409 in L Body Size

Application

For use in circuits subject to surge currents such as those caused by motors, transformers and other inductive loads

Standards

CE Certified | CSA C22.2 No. 106-M92

Features

  • Close sizing to loads allows using smaller and less costly switches
  • Provides a higher degree of short circuit protection
  • Helps protect motors against burnout from overloads
  • CIF06 fits the 30 A SafeLOC fuse holder

Specifications

Amperage Rating:20 A
Body Size:0.54 in Dia x 2.38 in L
Body Type:Cartridge
Country of Origin:GB
Interrupt Rating:200 kA
Material:Ceramic
Mounting Type:Clip-In
Series:CIF06
Terminal Type:Offset Knife Blade
Voltage Rating:600 VAC/250 VDC
