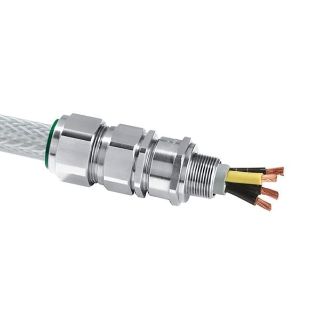

Picture of 20E1FX0755 APN
Actual Product May Vary From Image

20E1FX0755 APN

Appleton® 20E1FX0755 E1FX Straight Cable Gland, 3/4 in NPT Thread, 0.49 to 0.82 in Cable, Brass, Nickel Plated
Manufacturer: Appleton
Manufacturer part number: 20E1FX0755
Availability: Ships in 5-7 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$133.26

Product Details

Brand Name

Appleton®

Type

Straight

Description

Appleton® E1FX Series Nickel Plated Brass Cable Glands are ideal for use with armored cables (braid, tape, tape with lead sheath). They are certified for enclosures with the following protection modes: Ex d flameproof IIB or IIC (as per 10.4.2 of IEC 60079-14), Ex e increased safety, Ex nR restricted breathing and D dust environment. They are ideal for onshore and offshore use and for other hazardous areas exposed to gases and dust.
Appleton® Cable Gland, Straight, Series: E1FX, 3/4 in NPT Thread, 0.49 to 0.82 in Cable Dia, -60 to 130 deg C, Brass, Nickel Plated

Application

For use in hazardous areas with braided and tape armor cable

Standards

ABS Approved | ATEX 94/9/CE EX II 2G 3G 1D | ATEX Sira 13ATEX1071X/13ATEX4074X/13ATEX4077X | ATEX/IECEx Ex d IIC Gb/Ex e IIC Gb/Ex nR IIC Gc/Ex ta IIIC Da | cCSAus : 101909 | CCOE/PESO Certified | CE DC07001 | Deluge Protection Compliant DTS01:91 | DNV Approved | EN/IEC 60529 IP66 | EURASEC TC RU C-GB.05.B.00138 | IECEx SIR 13.0026X/IECEx SIM 14.0007X | INMETRO TUV 12.0618X | KCC Certified | LLOYDS Approved | NEC/CEC Class I Division 2 Group A B C D/Class II Division 2 Group E, F and G/Class III/Ex d IIC, Ex e IIC, Ex nR II

Features

  • Cable gland with elastomer seal for use in hazardous areas with braided and tape armor cable
  • The cable gland allows mechanical cable retention and earth continuity via armor termination
  • A detachable armor cone and anyway clamping ring arrangement facilitates remote make off and enables cable to be disconnected from the equipment
  • Inspection of the armor can be carried out while still maintaining the explosionproof protection mode of the enclosure
  • Sealing technique: Inner displacement seal concept and LRS outer seal (load retention seal)
  • Constructional feature flameproof

Specifications

Cable Diameter:0.49 to 0.82 in
Country of Origin:GB
Finish:Nickel Plated
Material:Brass
Series:E1FX
Temperature Rating:-60 to 130 deg C
Thread Size:3/4 in NPT
