20F11NC030JA0NNNNN AB

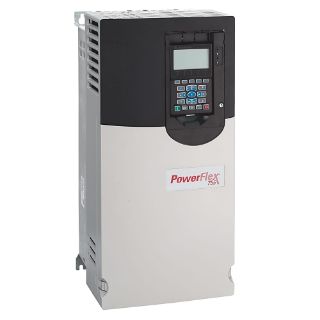

Picture of 20F11NC030JA0NNNNN AB
Actual Product May Vary From Image

Product Details

Manufacturer:
Allen-Bradley
Manufacturer part number:
20F11NC030JA0NNNNN
CBT Inventory
0
Vendor Inventory
Please login to see accurate availability
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Estimated dates are contingent upon manufacturer stock.
Status

Active

Log in for more accurate pricing
$4,163.81 / EA
You do not meet the requirements to purchase this product. Please contact your sales person.

Description

Type

Air Cooled

Description

753 AC Drive,Air Cooled,Open Type,400V AC 3 PH,30 A 15 kW ND 11 kW HD,AC In w/ Prchg, see More Info,Frame 3,Filtered, CM Jumper Inst alled,DB Transistor,Blank (No HIM),No Option,No Option,No Option,No Option,No Option,Carton & Documents

Standards

C-TICK, CE, CUL, GOST, KC, MARINE, UL

Specifications

Country of Origin:MUL
Display:Blank (No HIM)
Dynamic Braking:DB Transistor
Enclosure:Open Type
Filtering & CM Cap Config:Filtered, CM Jumper Installed
Input Type:AC In w/ Prchg, see More Info
Power Rating:30 Amps, 15kW ND, 11kW HD
Size:Frame 3
Voltage Rating:400 VAC, 3 PH

Resources

Spec Sheet
Drive Photo
Web Page Product Profile
2D Dimension Drawing (DXF)
Web Page Tech Data
Web Page Installation Instructions
Dimension Drawing (PDF)
Standard 2D Dimension Drawing (DXF)
Standard Dimension Drawing (PDF)
Standard 3D STEP (STP) Model
Product Cutsheet
Standard Block Connection Schematic IEC Drawing (PDF)
Standard Block Connection Schematic NEMA Drawing (PDF)
Standard Block Connection Schematic NEMA Drawing (DXF)
Standard Block Connection Schematic IEC Drawing (DXF)

Products Specifications

Brand Name
Allen-Bradley
Horsepower
15 kW
Output
30 Amps
Phase
3
Type
AC Drive
Voltage Rating
400 VAC
