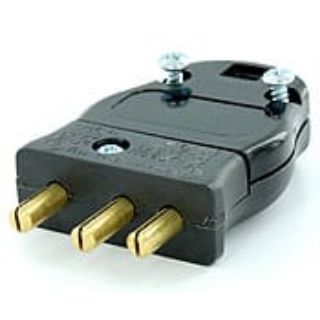

Actual Product May Vary From Image

20MP-E LEV

Name: 20MP-E LEV
Brand: Leviton Manufacturing
SKU: 20MP-E LEV
Availability: OutOfStock

Leviton® 20MP-E Double Pole Male Stage Pin Plug, 125 VAC, 20 A, 2 Poles, 3 Wires, Black

Manufacturer: Leviton Manufacturing

Manufacturer part number: 20MP-E

Availability: Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Leviton®

Type

Double Pole Male

Description

Leviton® new line of 20 A Stage Pin Connectors has been redesigned to be more user-friendly, durable and safe. The new ergonomic profile fits more comfortably in your hand, making it much easier to assemble and disassemble. This results in reduced fatigue for both the assembler and the user who frequently connects and disconnects cable assemblies. The unique profile also increases safety, as it is less likely to get entangled with other equipment.

Leviton® Stage Pin Plug, Double Pole Male, 125 VAC, 20 A, 2 Pole, 3 Wires, -20 to 105 deg C, Screw Terminal, PBT/Thermoplastic Polyester Resin, Black, 2.19 in L x 0.74 in W x 1.35 in H Dimensions

Application

Commercial Applications

Standards

UL Listed | USITT Compliant | UL94 V-2 Flammability Rating

Features

Male pins and female contacts have a 1-piece solid brass design for superior current flow and resistance from abuse
Split pins and contacts provide a spring action that extends life by compensating for wear
Pins and contacts float for improved electrical connections
Terminal identification letters molded into device ensure quick and accurate termination
Superior ergonomic design reduces user fatigue and provides for safer connect/disconnect
Certified for current interrupting at full rated current
16 to 12 AWG terminal accommodation
Solid brass contacts, polycarbonate terminal cover
Maximum 30 deg C after 150 cycles overload at 150% rated current temperature rise
USITT S3 compliance ensure compatibility with all competitive products

Specifications

Amperage Rating:	20 A
Color:	Black
Country of Origin:	CN
Dimensions:	2.19 in L x 0.74 in W x 1.35 in H
Grade:	Commercial
Material:	PBT/Thermoplastic Polyester Resin
Number of Poles:	2
Number of Wires:	3
Temperature Rating:	-20 to 105 deg C
Terminal Type:	Screw
Voltage Rating:	125 VAC
