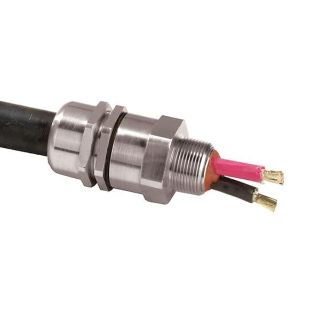

Picture of 20PX0755 APN
Actual Product May Vary From Image

20PX0755 APN

Appleton® 20PX0755 PXSS2K Straight Cable Gland Connector, 20 Trade, 0.26 to 0.55 in Cable Openings, Brass, Nickel Plated
Manufacturer: Appleton
Manufacturer part number: 20PX0755
Availability: Ships in 5-7 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$243.10

Product Details

Brand Name

Appleton®

Type

Straight

Description

Appleton® PXSS2K Series Compound Barrier Type Cable Connectors are flameproof Class I cable connectors suitable for unarmored, extra hard usage, tray (TC) and shipboard cables. It provides an environmental seal on the cable jacket and an explosionproof compound barrier seal around the cable inner cores.
Appleton® Cable Gland Connector, Straight, Series: PXSS2K, 20 Trade, Cable Openings: 0.26 to 0.55 in, Unarmored/Tray/Shipboard/SO Cable, 3/4 in NPT, Brass, Nickel Plated, -76 to 185 deg F

Application

Flame proof Class I cable connector suitable for unarmored, extra hard usage, tray (TC) and shipboard cables

Standards

ATEX Sira 13ATEX10712X/13ATEX4078X | ATEX/IECEx Zone 1 Ex d IIC/Ex e IIC/Ex nR II/Ex tD | CE Declaration of Conformity: DC07001 | cCSAus 101909 | CSA C22.2 #174 | EURASEC TC RU C-GB.05.B.00138 | IECEx SIR 13.0027X | INMETRO TUV 12.2073X | NEC/CEC Class I Division 1 Group C D/Class I Division 2 Group A B C D/Class II Division 1 and 2 Group E F G/Class III | NEMA 4X IP66/IP67/IP68 | UL 2225/E161256

Features

  • Sealing technique: displacement seal concept
  • Sealing area: inner compound barrier and outer sheath
  • Entry thread seal not supplied
  • Constructional feature flameproof and explosionproof
  • Optional 3/4 in NPT connection

Specifications

Cable Openings:0.26 to 0.55 in
Cable Type:Unarmored/Tray/Shipboard/SO
Connection Type:3/4 in NPT
Country of Origin:GB
Finish:Nickel Plated
Material:Brass
Series:PXSS2K
Temperature Rating:-76 to 185 deg F
Trade Size:20
