20X30X7SB-T DIC

Name: 20X30X7SB-T DIC
Brand: Dichtomatik
SKU: 20X30X7SB-T DIC
Availability: OutOfStock

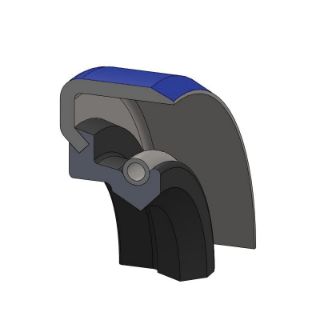

Actual Product May Vary From Image

Product Details

Manufacturer:

Dichtomatik

Manufacturer part number:

20X30X7SB-T

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

TCM®

Type

Type SB Single-Lip

Description

TCM® Shaft Seal, Type SB Single-Lip, 20 mm Inside Dia, 30 mm Outside Dia, 7 mm Width, -40 to 107 deg C, 0 to 7 psi, Carbon Steel

Application

Mechanical Power Transmission, Food and Beverage, Chemical, Pharmaceutical, Energy and Power Generation, Fluid Handling, Lawn and Garden, Material Handling, Recreational Vehicles, Trailer and Manufacturing Industries

Standards

ASTM D2000 M2BG714 A14 B14 EO14 EO34 EF11 EF21 EA14 F17 | DNV | ISD Certified | NFPA Listed | PTDA

Features

Single lip with a garter spring - generally used for sealing lower pressure applications
However, not recommended for use in applications where the surrounding environment contains any dirt or contaminants
Metal OD with lead-in chamfer - this type is most suitable for steel or cast iron housing materials
The metal case gives a particularly firm and accurate seat in the housing, but static sealing on the OD is partially limited
Nitrile single lip spring lip attached to end of case only

Specifications

Inside Diameter:	20 mm
Material:	Carbon Steel
Outside Diameter:	30 mm
Pressure Rating:	0 to 7 psi
Temperature Rating:	-40 to 107 deg C
Width:	7 mm
