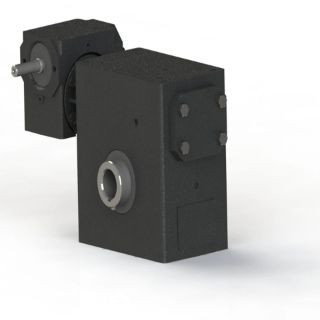

Actual Product May Vary From Image

2102 150/1 WR 1.000 HUB

Name: 2102 150/1 WR 1.000 HUB
SKU: 2102 150/1 WR 1.000 HUB
Availability: OutOfStock

Hub City® PowerCubeX® 0230-19464 2100 Double Reduction Right Angle Worm Gear Reducer, Shaft Input, Hollow Bore Output, 0.37 hp Input, 150:1 Gear, 11.7 rpm Maximum Output, 1190 in-lb Output Torque Rating

Manufacturer part number: 0230-19464

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Hub City®

Type

Double Reduction Right Angle

Description

Hub City® PowerCubeX® Worm Gear Reducer, Double Reduction Right Angle, Series: 2100, 150:1 Gear Ratio, 0.37 hp Input, Shaft Input, Hollow Bore Output, 0.5 in Dia x 1.76 in L Input, 1 in Dia Output, 11.7 rpm Output Maximum Speed, 1750 rpm Input Maximum Speed, 1190 in-lb Output, 2.06 in Centre Distance, 1/8 x 1/16 in Input, 1/4 x 1/8 in Output Keyway, 59.1 % Efficiency, Conventional Oil Lubrication, Cast Iron

Application

Conveyors and Conveying Equipment, Printing Equipment, Agriculture, Food Processing, Bottling Equipment, Grain Handling, Packaging Machinery, Cement and Asphalt

Standards

AGMA Class 1

Features

Modular design
Universal mounting dimensions
Increased thermal capacity and increased efficiency
Alloy shafting
FKM seals

Specifications

Centre Distance:	2.06 in
Efficiency:	59.1 %
Gear Ratio:	150:1
Horsepower:	0.37 hp Input
Input Maximum Speed:	1750 rpm
Input Size:	0.5 in Dia x 1.76 in L
Input Type:	Shaft
Keyway Size:	1/8 x 1/16 in Input, 1/4 x 1/8 in Output
Lubrication Type:	Conventional Oil
Material:	Cast Iron
Output Maximum Speed:	11.7 rpm
Output Size:	1 in Dia
Output Type:	Hollow Bore
Series:	2100
Torque Rating:	1190 in-lb Output
