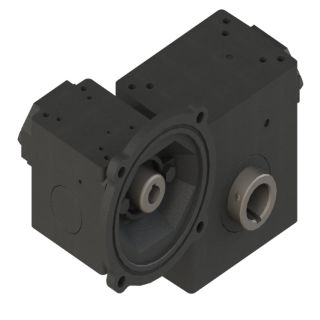

Actual Product May Vary From Image

2105 500/1 WR 56C 1.188 HUB

Name: 2105 500/1 WR 56C 1.188 HUB
SKU: 2105 500/1 WR 56C 1.188 HUB
Availability: OutOfStock

Hub City® PowerCubeX® 0230-19969 2100 Double Reduction Right Angle Worm Gear Reducer, C-Face Quill Input, Hollow Bore Output, 0.147 hp Input, 500:1 Gear, 3.5 rpm Maximum Output, 1233 in-lb Output Torque Rating

Manufacturer part number: 0230-19969

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Hub City®

Type

Double Reduction Right Angle

Description

Hub City® PowerCubeX® Worm Gear Reducer, Double Reduction Right Angle, Series: 2100, 500:1 Gear Ratio, 0.147 hp Input, C-Face Quill Input, Hollow Bore Output, 5/8 in Dia Input, 1.188 in Dia Output, 3.5 rpm Output Maximum Speed, 1750 rpm Input Maximum Speed, 1233 in-lb Output Torque, 2.06 in Centre Distance, 46.4 % Efficiency, Conventional Oil Lubrication, Cast Iron, 2.78 in W

Features

Modular design
Universal mounting dimensions
Increased thermal capacity and increased efficiency
Alloy shafting
FKM seals

Specifications

Centre Distance:	2.06 in
Dimensions:	2.78 in W
Efficiency:	46.4 %
Gear Ratio:	500:1
Horsepower:	0.147 hp Input
Input Maximum Speed:	1750 rpm
Input Size:	5/8 in Dia
Input Type:	C-Face Quill
Lubrication Type:	Conventional Oil
Material:	Cast Iron
Output Maximum Speed:	3.5 rpm
Output Size:	1.188 in Dia
Output Type:	Hollow Bore
Series:	2100
Torque Rating:	1233 in-lb Output
