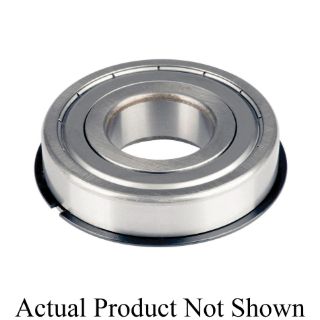

211KDDG TKN

Bearings in the 200 series bearings feature a close dimensional balance between bore, outside diameter and width. These characteristics make them well-suited for a broad range of applications involving light to medium loads combined with relatively high-speeds. Wide-type 200 series rubber seal(W200PP) and mechani-seal(W200KLL) bearings are made with standard bores and outside diameters, but in widths equal to the corresponding sizes of double-row bearings. This series offers a larger support area for shaft and housing contact and extra space for lubricant.

Timken®, 211KDDGC1, Deep Groove Radial Ball Bearing, Light Round Bore, Series: 200, 55 mm Bore, 100 mm OD, 1 Rows, 21 mm Width, Double Shield Closure, 10800 lb Dynamic/6550 lb Static Load, Steel Bearing, Metal Seal, 4520 rpm Maximum, -50 to 120 deg C, Uncoated
