21309-E1-XL-TVPB-C3 FAG

Name: 21309-E1-XL-TVPB-C3 FAG
Brand: INA
SKU: 21309-E1-XL-TVPB-C3 FAG
Price: 258.19 USD
Availability: OutOfStock

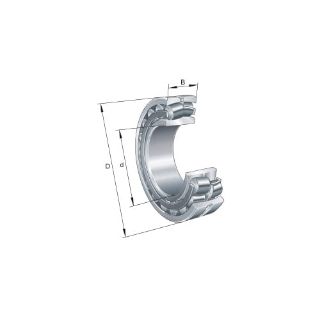

Actual Product May Vary From Image

Product Details

Manufacturer:

INA

Manufacturer part number:

21309-E1-XL-TVPB-C3

CBT Inventory

Vendor Inventory

Availability:

Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

$258.19 / EA

Description

Brand Name

FAG

Type

Cylindrical Bore

Description

FAG spherical roller bearings have proved highly effective wherever high loads are present and there is a need to compensate for shaft deflections and/or misalignment of bearing seats.

FAG Spherical Roller Bearing, Cylindrical Bore, Series: 213..-E1, 45 mm Bore Dia, 100 mm Outside Dia, 2 Rows, 25 mm W, Open Closure, 129000 N Dynamic/130000 N Static, Steel Bearing, Polyamide Cage, 9000 rpm Maximum, -30 to 200 deg C, Uncoated

Application

Vibrating Screens, Continuous Casting Machines, Wind Turbines and Paper Production

Standards

Meets to DIN 635-2

Features

Higher performance bearing arrangements
Lower operating costs
C3 radial internal clearance
Solid cage made from glass fiber reinforced polyamide

Specifications

Bearing Material:	Steel
Bore Diameter:	45 mm
Cage Material:	Polyamide
Closure Type:	Open
Finish:	Uncoated
Load Capacity:	129000 N Dynamic/130000 N Static
Maximum Speed:	9000 rpm
Number of Rows:	2
Outside Diameter:	100 mm
Series:	213..-E1
Temperature Rating:	-30 to 200 deg C
Width:	25 mm
