21317-E1-XL FAG

Product Details

Manufacturer:
Manufacturer part number:
21317-E1-XL
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.

Description

Brand Name

FAG

Type

Cylindrical Bore

Description

FAG spherical roller bearings have proved highly effective wherever high loads are present and there is a need to compensate for shaft deflections and/or misalignment of bearing seats.

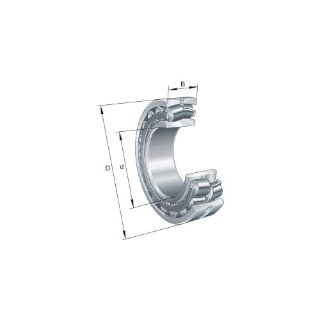

FAG Spherical Roller Bearing, Cylindrical Bore, Series: 213..-E1 Series, 85 mm Bore Dia, 180 mm Outside Dia, 2 Rows, 41 mm Width, 345000 N Dynamic/375000 N Static, 5200 rpm Maximum, -30 to 200 deg C

Application

Vibrating Screens, Continuous Casting Machines, Wind Turbines and Paper Production

Standards

Meets to DIN 635-2

Features

  • Higher performance bearing arrangements
  • Lower operating costs

Specifications

Bore Diameter:85 mm
Load Capacity:345000 N Dynamic/375000 N Static
Maximum Speed:5200 rpm
Number of Rows:2
Outside Diameter:180 mm
Series:213..-E1
Temperature Rating:-30 to 200 deg C
Width:41 mm
