214L 20/1 A WR 56C HUB

Name: 214L 20/1 A WR 56C HUB
Brand: Hub City
SKU: 214L 20/1 A WR 56C HUB
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturers:

Hub City , Hub City , Hub City

Manufacturer part number:

0230-03577

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Hub City®

Type

Right Angle Single Reduction Style A

Description

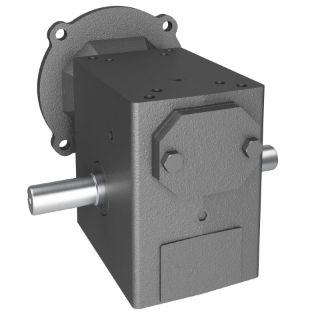

Hub City® PowerCubeX® Worm Gear Reducer, Right Angle Single Reduction Style A, Series: 210LPCX, 20:1 Gear Ratio, 1.5 hp Input, C-Face Quill Input, Shaft Output, 5/8 in Dia Input, 7/8 in Dia Output, 87.5 rpm Output Maximum Speed, 1750 rpm Input Maximum Speed, 917 in-lb Output Torque, 2.06 in Centre Distance, 3/16 x 3/32 in Input Keyway, 86.3 % Efficiency, PAG Synthetic Oil Lubrication, Cast Iron, 8-1/2 in W x 6 in H

Features

Modular design
Universal mounting dimensions
Increased thermal capacity and increased efficiency
Alloy shafting
FKM seals
Factory lubricated with food-grade synthetic lubricant - USDA class H1 approved

Specifications

Centre Distance:	2.06 in
Dimensions:	8-1/2 in W x 6 in H
Efficiency:	86.3 %
Gear Ratio:	20:1
Horsepower:	1.5 hp Input
Input Maximum Speed:	1750 rpm
Input Size:	5/8 in Dia
Input Type:	C-Face Quill
Keyway Size:	3/16 x 3/32 in Input
Lubrication Type:	PAG Synthetic Oil
Material:	Cast Iron
Output Maximum Speed:	87.5 rpm
Output Size:	7/8 in Dia
Output Type:	Shaft
Series:	210LPCX
Torque Rating:	917 in-lb Output
