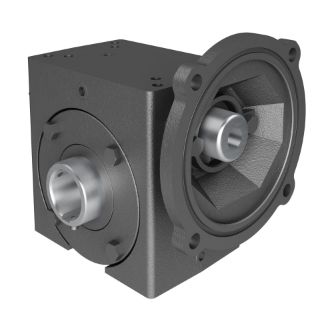

Picture of 215 10/1 A WR 143TC 1.250 HUB
Actual Product May Vary From Image

215 10/1 A WR 143TC 1.250 HUB

Hub City® PowerCubeX® 0230-02843 210PCX Right Angle Single Reduction Style A Worm Gear Reducer, C-Face Quill Input, Hollow Bore Output, 2-1/2 hp Input, 10:1 Gear, 175 rpm Maximum Output, 758 in-lb Output Torque Rating
Manufacturer part number: 0230-02843
Availability: Ships in 1-2 weeks.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
Price on Request

Product Details

Brand Name

Hub City®

Type

Right Angle Single Reduction Style A

Description

Hub City® PowerCubeX® Worm Gear Reducer, Right Angle Single Reduction Style A, Series: 210PCX, 10:1 Gear Ratio, 2-1/2 hp Input, C-Face Quill Input, Hollow Bore Output, 7/8 in Dia Input, 1-1/4 in Dia Output, 175 rpm Output Maximum Speed, 1750 rpm Input Maximum Speed, 758 in-lb Output, 2.06 in Centre Distance, 1/4 x 1/8 in Output Keyway, 84.2 % Efficiency, Conventional Oil Lubrication, Cast Iron, 5.56 in W

Application

Conveyors and Conveying Equipment, Printing Equipment, Agriculture, Food Processing, Bottling Equipment, Grain Handling, Packaging Machinery, Cement and Asphalt

Standards

AGMA Class 1

Features

  • Modular design
  • Universal mounting dimensions
  • Increased thermal capacity and increased efficiency
  • Alloy shafting
  • FKM seals

Specifications

Centre Distance:2.06 in
Dimensions:5.56 in W
Efficiency:84.2 %
Gear Ratio:10:1
Horsepower:2-1/2 hp Input
Input Maximum Speed:1750 rpm
Input Size:7/8 in Dia
Input Type:C-Face Quill
Keyway Size:1/4 x 1/8 in Output
Lubrication Type:Conventional Oil
Material:Cast Iron
Output Maximum Speed:175 rpm
Output Size:1-1/4 in Dia
Output Type:Hollow Bore
Series:210PCX
Torque Rating:758 in-lb Output
