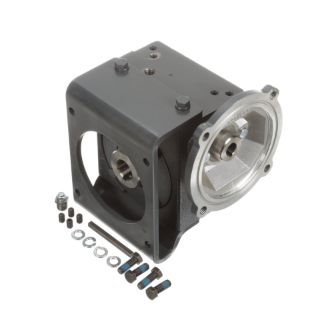

216 20/1 R WR 143TC 1.438 HUB

Name: 216 20/1 R WR 143TC 1.438 HUB
SKU: 216 20/1 R WR 143TC 1.438 HUB
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer part number:

0230-03289

product.name:

216 20/1 R WR 143TC 1.438 HUB

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Hub City®

Type

Right Angle Single Reduction Style R

Description

Hub City® PowerCubeX® Worm Gear Reducer, Right Angle Single Reduction Style R, Series: 210PCX, 20:1 Gear Ratio, 1-1/2 hp Input, C-Face Quill Input, Hollow Bore Output, 7/8 in Dia Input, 1.438 in Dia Output, 87.5 rpm Output Maximum Speed, 1750 rpm Input Maximum Speed, 839 in-lb Output, 2.06 in Centre Distance, 3/8 x 1/8 in Output Keyway, 79 % Efficiency, Conventional Oil Lubrication, Cast Iron

Application

Conveyors and Conveying Equipment, Printing Equipment, Agriculture, Food Processing, Bottling Equipment, Grain Handling, Packaging Machinery, Cement and Asphalt

Standards

AGMA Class 1

Features

Modular design
Universal mounting dimensions
Increased thermal capacity and increased efficiency
Alloy shafting
FKM seals

Specifications

Centre Distance:	2.06 in
Efficiency:	79 %
Gear Ratio:	20:1
Horsepower:	1-1/2 hp Input
Input Maximum Speed:	1750 rpm
Input Size:	7/8 in Dia
Input Type:	C-Face Quill
Keyway Size:	3/8 x 1/8 in Output
Lubrication Type:	Conventional Oil
Material:	Cast Iron
Output Maximum Speed:	87.5 rpm
Output Size:	1.438 in Dia
Output Type:	Hollow Bore
Series:	210PCX
Torque Rating:	839 in-lb Output

Resources

Video
