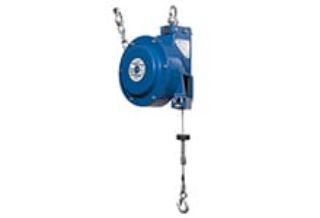

Aero-Motive® 220KA 130172 Heavy Industrial Duty Zero Gravity Balancer With Upper/Lower Bullard Hooks, Upper Shackle Assembly, 200 to 221 lb Load, 5.91 ft L Cable, 6 ft Travel
Manufacturer: Molex/Woodhead
Manufacturer part number: 220KA
Availability: Ships in 5-7 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
Price on Request

Product Details

Brand Name

Aero-Motive®

Type

Heavy Industrial Duty Zero Gravity

Description

It's a simple fact. Make a job easier to do, and you can do it better, faster, longer. Balancers and tool support systems by Woodhead® improve the productivity of light assembly, packaging, and many other shop floor workers by keeping their tools out of the way when not needed. With balancers, workstations can be organized more efficiently by ensuring that tools are always in the right place. Expensive power tools suspended from balancers are safeguarded from being accidentally dropped onto the floor or onto other expensive products or equipment.
Aero-Motive® Balancer, Heavy Industrial Duty Zero Gravity, Series: 130172/KA Series, 200 to 221 lb, 5.91 ft Cable Length, 6 ft Travel, 12 in Width, Stranded Galvanized Steel Cable, Cast Aluminum Housing, Red with White Trace/Red/Green/Red with Orange Trace/Red with Black Trace Locking, Hanging Mount

Features

  • Premature failure is prevented by a Wear-Guard® coating on the drum and a 4-roller guide, which protect the cable and drum from excessive wear
  • Quick, easy tool changes with manual drum lock
  • Automatic drum lock secures load even if tension drops
  • Safe, easy spring handling is ensured with heavy duty containerized mainspring
  • Easy external adjustment with no special tools
  • Full range of motion with 360 deg swivel hanger
  • Spring damage prevented by declutching hub, even if spring is reverse wound
  • Shackle design provides extra-secure mounting
  • Cast aluminum construction for long life
  • 3/16 in Dia stranded galvanized steel cable

Specifications

Cable Length:5.91 ft
Cable Material:Stranded Galvanized Steel
Country of Origin:MX
Housing Material:Cast Aluminum
Load Capacity:200 to 221 lb
Locking Type:Red with White Trace/Red/Green/Red with Orange Trace/Red with Black Trace
Mounting Type:Hanging
Series:130172/KA Series
Travel:6 ft
Width:12 in
