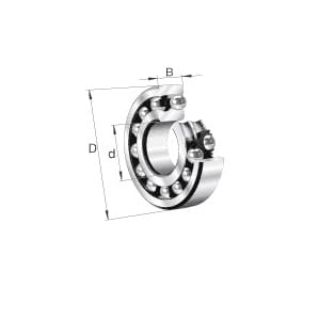

Actual Product May Vary From Image

2210-TVH FAG

Name: 2210-TVH FAG
Brand: INA
SKU: 2210-TVH FAG
Price: 156.25 USD
Availability: OutOfStock

FAG 2210-TVH 22 Series Self-Aligning Ball Bearing, 50 mm Dia Bore, 90 mm OD, 2 Rows, 23 mm W, 28500 N Dynamic/9400 N Static/580 N Fatigue Load

Manufacturer: INA

Manufacturer part number: 2210-TVH

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$156.25

Qty:

Product Details

Brand Name

FAG

Description

FAG Self-Aligning Ball Bearing, Series: 22 Series, 50 mm Bore Dia, 90 mm Outside Dia, 2 Rows, 23 mm W, Open Closure, 28500 N Dynamic/9400 N Static/580 N Fatigue, Steel Bearing, Polyamide 66 Cage, 8100 rpm Maximum, 120 deg C, Uncoated

Standards

Meets to DIN 630

Features

Solid cage made from glass fiber reinforced polyamide 66

Specifications

Bearing Material:	Steel
Bore Diameter:	50 mm
Cage Material:	Polyamide 66
Closure Type:	Open
Finish:	Uncoated
Load Capacity:	28500 N Dynamic/9400 N Static/580 N Fatigue
Maximum Speed:	8100 rpm
Number of Rows:	2
Outside Diameter:	90 mm
Series:	22 Series
Temperature Rating:	120 deg C
Width:	23 mm
