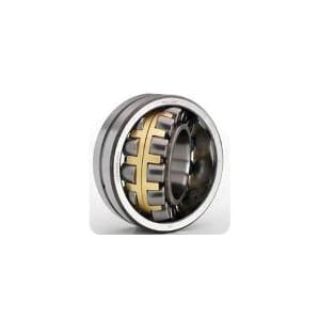

Actual Product May Vary From Image

22213 MB W33 RLW

Name: 22213 MB W33 RLW
Brand: Regal Rexnord
SKU: 22213 MB W33 RLW
Availability: OutOfStock

Rollway® 22213 MB W33 22200 Round Straight Bore Unmounted Spherical Roller Bearing, 65 mm Dia Bore, 120 mm OD, 2 Rows, 31 mm W, 176.4 kN Dynamic/205 kN Static Load

Manufacturer: Regal Rexnord

Manufacturer part number: 22213 MB W33

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Rollway®

Type

Round Straight Bore Unmounted

Description

Spherical roller bearings are designed to provide for heavy loads, shaft misalignment and deflection. They contain two symmetrical or asymmetrical rows of barrel shaped rollers which align themselves in the outer race sphered track. They are therefore able to carry very heavy radial loads and axial loads in either direction.

Rollway® Spherical Roller Bearing, Round Straight Bore Unmounted, Series: 22200, 65 mm Bore Dia, 120 mm Outside Dia, 2 Rows, 31 mm Width, 176.4 kN Dynamic/205 kN Static Load, High Carbon Chromium Steel Bearing, Brass Cage, 4250 rpm Grease/5950 rpm Oil Maximum, 120 deg C

Application

Aggregate, Cement, Forestry, Metals, Minerals, Mining, Oil, Gas, Packaging Machinery, Pulp, Paper and Unit Handling Industries

Features

Superior load ratings
Longer life
Smooth running
Less noise and vibrations
Low maintenance cost
Cylindrical outside ring shape
Lubrication groove and 3 lubrication holes on the outside diameter
Normal (CN) radial clearance
2-piece brass cage, roller guided between 2 inner ring flanges and one central rib, cage is guided on the inner ring

Specifications

Bearing Material:	High Carbon Chromium Steel
Bore Diameter:	65 mm
Cage Material:	Brass
Load Capacity:	176.4 kN Dynamic/205 kN Static
Maximum Speed:	4250 rpm Grease/5950 rpm Oil
Number of Rows:	2
Outside Diameter:	120 mm
Series:	22200
Temperature Rating:	120 deg C
Width:	31 mm
