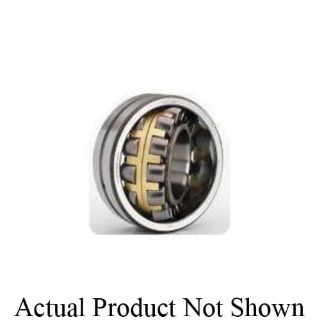

Actual Product May Vary From Image

22220 MB KC3 W33 RLW

Name: 22220 MB KC3 W33 RLW
Brand: Regal Rexnord
SKU: 22220 MB KC3 W33 RLW
Availability: OutOfStock

Rollway® 22220 MB KC3 W33 22200 Round/Tapered Bore Unmounted Spherical Roller Bearing, 100 mm Dia Bore, 180 mm OD, 2 Rows, 46 mm W, 340 kN Dynamic/455 kN Static Load

Manufacturer: Regal Rexnord

Manufacturer part number: 22220 MB KC3 W33

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Rollway®

Type

Round/Tapered Bore Unmounted

Description

Spherical roller bearings are designed to provide for heavy loads, shaft misalignment and deflection. They contain two symmetrical or asymmetrical rows of barrel shaped rollers which align themselves in the outer race sphered track. They are therefore able to carry very heavy radial loads and axial loads in either direction.

Rollway® Spherical Roller Bearing, Round/Tapered Bore Unmounted, Series: 22200, 100 mm Bore Dia, 180 mm Outside Dia, 2 Rows, 46 mm W, Open Closure, 340 kN Dynamic/455 kN Static, High Carbon Chromium Steel Bearing, Brass Cage, 2000 rpm Grease/2600 rpm Oil Maximum, 120 deg C

Application

Aggregate and Cement, Forestry, Metals, Minerals, Mining, Oil, Gas, Packaging Machinery, Pulp, Paper and Unit Handling Industries

Features

Superior load ratings
Longer life
Smooth running
Less noise and vibrations
Low maintenance cost
Cylindrical outside ring shape
C3 radial clearance
Lubrication groove and 3 lubrication holes on the outside diameter
2-piece brass cage, roller guided between 2 inner ring flanges and one central rib, cage is guided on the inner ring

Specifications

Bearing Material:	High Carbon Chromium Steel
Bore Diameter:	100 mm
Cage Material:	Brass
Closure Type:	Open
Country of Origin:	CN
Load Capacity:	340 kN Dynamic/455 kN Static
Maximum Speed:	2000 rpm Grease/2600 rpm Oil
Number of Rows:	2
Outside Diameter:	180 mm
Series:	22200
Temperature Rating:	120 deg C
Width:	46 mm
