22226 CJW33C3 TKN

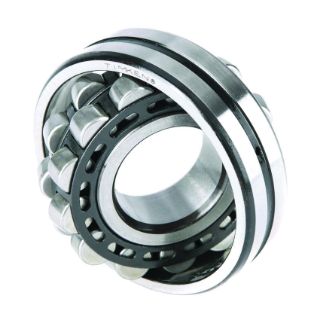

Picture of 22226 CJW33C3 TKN
Actual Product May Vary From Image

Product Details

Manufacturer:
Timken
Manufacturer part number:
22226EJW33C3
CBT Inventory
0
Vendor Inventory
Please login to see accurate availability
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Estimated dates are contingent upon manufacturer stock.
Price on Request
You do not meet the requirements to purchase this product. Please contact your sales person.

Description

Brand Name

Timken

Description

Timken® high performance spherical roller bearings feature industry-leading load ratings and thermal reference speeds. With one of the broadest offerings in the industry, Timken® high performance spherical roller bearings handle high radial loads, as well as axial loads in both directions. Up to 2.5° of shaft misalignment can be accommodated.
Timken Spherical Roller Bearing | 130 mm 5.1 in Bore | 230 mm 9.1 in OD

Features

  • Enhanced surface finishes
  • Optimized internal geometry
  • Industry-leading load ratings
  • Nitride hardened steel cage with face slots |(W33) Standard lubrication holes and groove in outer ring

Specifications

Bearing Material:Steel
Bearing Type:Spherical Roller Bearings
Bore Type:Straight
Cage (Retainer) Type:Design Style - EJ
Cage Material:Steel Cage
Component (I/R; O/R assembly):Assembly
Dynamic Load Rating:170000
Fillet Radius - Inch:0.1
Fillet Radius - Millimeter:3
Inner Race Width (in):2.5197
Inner Race Width (mm):64
Internal Clearance:C3
Load Rating UOM:LB
Lubrication Hole/Groove:yes
Manufacturer Produt Page Link:https://www.timken.com/products/timken-engineered-bearings/spherical/
Material - Rolling Elements:Roller
Maximum Operating RPM (Grease):2400
Maximum Operating RPM (Oil):2900
Outer Diameter (in):9.055
Outer Diameter (mm):230
Outer Diameter Type:Straight
Outer Race Width (in):2.5197
Outer Race Width (mm):64
Overall Width (in):2.52
Overall Width (mm):64
Precision class:P0
Relubricatable:yes
Rolling Element:Spherical
Row Type:Double
Self Aligning:Yes
Series:222
Shaft Size (in):5.118
Shaft Size (mm):130
Snap Ring:no
Static Load Rating:212000
