22309-E1-XL-C3 FAG

Name: 22309-E1-XL-C3 FAG
Brand: INA
SKU: 22309-E1-XL-C3 FAG
Price: 315.40 USD
Availability: OutOfStock

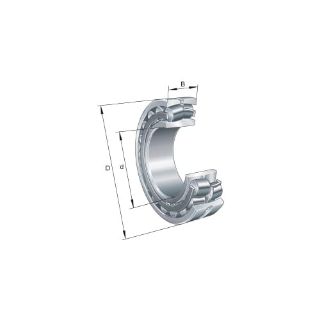

FAG 22309-E1-XL-C3 223..-E1 Cylindrical Bore Spherical Roller Bearing, 45 mm Dia Bore, 100 mm OD, 2 Rows, 36 mm W, 187000 N Dynamic/183000 N Static Load

Manufacturer: INA

Manufacturer part number: 22309-E1-XL-C3

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$315.40

Qty:

Product Details

Brand Name

FAG

Type

Cylindrical Bore

Description

FAG spherical roller bearings have proved highly effective wherever high loads are present and there is a need to compensate for shaft deflections and/or misalignment of bearing seats.

FAG Spherical Roller Bearing, Cylindrical Bore, Series: 223..-E1, 45 mm Bore Dia, 100 mm Outside Dia, 2 Rows, 36 mm W, Open Closure, 187000 N Dynamic/183000 N Static, Steel Bearing, Steel Cage, 6800 rpm Maximum, -30 to 200 deg C, Uncoated

Application

Vibrating Screens, Continuous Casting Machines, Wind Turbines and Paper Production

Standards

Meets to DIN 635-2

Features

Higher performance bearing arrangements
Lower operating costs
C3 radial internal clearance

Specifications

Bearing Material:	Steel
Bore Diameter:	45 mm
Cage Material:	Steel
Closure Type:	Open
Finish:	Uncoated
Load Capacity:	187000 N Dynamic/183000 N Static
Maximum Speed:	6800 rpm
Number of Rows:	2
Outside Diameter:	100 mm
Series:	223..-E1
Temperature Rating:	-30 to 200 deg C
Width:	36 mm
