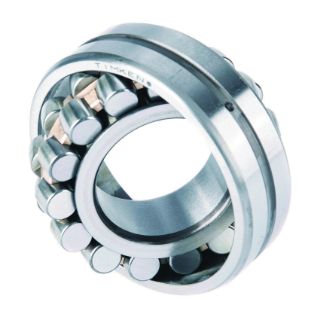

Actual Product May Vary From Image

22320EMW33W800C4 TKN

Name: 22320EMW33W800C4 TKN
Brand: Timken
SKU: 22320EMW33W800C4 TKN
Availability: OutOfStock

Timken 22320EMW33W800C4 Spherical Roller Bearings Brass Cage Straight Bore | Bore 100.000 mm 3.9370 in | OD 215.000 mm 8.4646 in | Width 73.000 mm 2.8740 in

Manufacturer: Timken

Manufacturer part number: 22320EMW33W800C4

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Timken

Description

Timken® high performance spherical roller bearings feature industry-leading load ratings and thermal reference speeds. With one of the broadest offerings in the industry, Timken® high performance spherical roller bearings handle high radial loads, as well as axial loads in both directions. Up to 2.5° of shaft misalignment can be accommodated.

Features

Enhanced surface finishes | Optimized internal geometry | Industry-leading load ratings | One-piece, machined-brass, roller riding, finger-type cage |(W33) Standard lubrication holes and groove in outer ring |(W800) Bearing has shaker screen modifications: Outer ring has reduced outside diameter tolerance, Inner ring has reduced bore tolerance, and Radial Internal Clearance in upper 2/3 of clearance specified

Specifications

Bearing Material:	Steel
Bearing Type:	Spherical Roller Bearings
Bore Type:	Straight
Cage (Retainer) Type:	Design Style - EM
Cage Material:	Brass Cage
Component (I/R; O/R assembly):	Assembly
Dynamic Load Rating:	173000
Fillet Radius - Inch:	0.1
Fillet Radius - Millimeter:	2.5
Inner Race Width (in):	2.874
Inner Race Width (mm):	73
Internal Clearance:	C4
Load Rating UOM:	LB
Lubrication Hole/Groove:	yes
Manufacturer Produt Page Link:	https://www.timken.com/products/timken-engineered-bearings/spherical/
Material - Rolling Elements:	Roller
Maximum Operating RPM (Grease):	2500
Maximum Operating RPM (Oil):	2900
Outer Diameter (in):	8.465
Outer Diameter (mm):	215
Outer Diameter Type:	Straight
Outer Race Width (in):	2.874
Outer Race Width (mm):	73
Overall Width (in):	2.874
Overall Width (mm):	73
Precision class:	P0
Relubricatable:	yes
Rolling Element:	Spherical
Row Type:	Double
Self Aligning:	Yes
Series:	223
Shaft Size (in):	3.937
Shaft Size (mm):	100
Snap Ring:	no
Static Load Rating:	779000
