22324EMW33C3 TKN

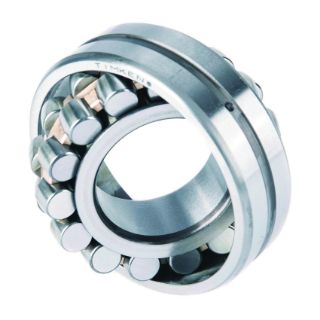

Picture of 22324EMW33C3 TKN
Actual Product May Vary From Image

Product Details

Manufacturer:
Timken
Manufacturer part number:
22324EMW33C3
CBT Inventory
0
Vendor Inventory
Please login to see accurate availability
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Estimated dates are contingent upon manufacturer stock.
Price on Request
You do not meet the requirements to purchase this product. Please contact your sales person.

Description

Brand Name

Timken

Description

Timken® high performance spherical roller bearings feature industry-leading load ratings and thermal reference speeds. With one of the broadest offerings in the industry, Timken® high performance spherical roller bearings handle high radial loads, as well as axial loads in both directions. Up to 2.5° of shaft misalignment can be accommodated.

Features

Enhanced surface finishes | Optimized internal geometry | Industry-leading load ratings | One-piece, machined-brass, roller riding, finger-type cage |(W33) Standard lubrication holes and groove in outer ring

Specifications

Bearing Material:Steel
Bearing Type:Spherical Roller Bearings
Bore Type:Straight
Cage (Retainer) Type:Design Style - EM
Cage Material:Brass Cage
Component (I/R; O/R assembly):Assembly
Dynamic Load Rating:244000
Fillet Radius - Inch:0.1
Fillet Radius - Millimeter:2.5
Inner Race Width (in):3.3858
Inner Race Width (mm):86
Internal Clearance:C3
Load Rating UOM:LB
Lubrication Hole/Groove:yes
Manufacturer Produt Page Link:https://www.timken.com/products/timken-engineered-bearings/spherical/
Material - Rolling Elements:Roller
Maximum Operating RPM (Grease):1900
Maximum Operating RPM (Oil):2200
Outer Diameter (in):10.236
Outer Diameter (mm):260
Outer Diameter Type:Straight
Outer Race Width (in):3.3858
Outer Race Width (mm):86
Overall Width (in):3.386
Overall Width (mm):86
Precision class:P0
Relubricatable:yes
Rolling Element:Spherical
Row Type:Double
Self Aligning:Yes
Series:223
Shaft Size (in):4.724
Shaft Size (mm):120
Snap Ring:no
Static Load Rating:1080000

Resources

Brochure
