22338 CA C3 W33 RLW

Name: 22338 CA C3 W33 RLW
Brand: Regal Rexnord
SKU: 22338 CA C3 W33 RLW
Availability: OutOfStock

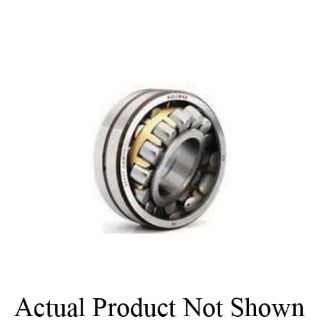

Actual Product May Vary From Image

Product Details

Manufacturer:

Regal Rexnord

Manufacturer part number:

22338 CA C3 W33

CBT Inventory

Vendor Inventory

Availability:

Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Rollway®

Type

Round/Straight Bore Unmounted

Description

Spherical roller bearings are designed to provide for heavy loads, shaft misalignment and deflection. They contain two symmetrical or asymmetrical rows of barrel shaped rollers which align themselves in the outer race sphered track. They are therefore able to carry very heavy radial loads and axial loads in either direction.

Rollway® Spherical Roller Bearing, Round/Straight Bore Unmounted, Series: 22300, 190 mm Bore Dia, 400 mm Outside Dia, 2 Rows, 132 mm Width, 1810 kN Dynamic/2540 kN Static, High Carbon Chromium Steel Bearing, Brass Cage, 880 rpm Grease/1200 rpm Oil Maximum, 150 deg C

Application

Aggregate and Cement, Forestry, Metals, Minerals, Mining, Oil, Gas, Packaging Machinery, Pulp, Paper and Unit Handling Industries

Features

Superior load ratings
Longer life
Smooth running
Less noise and vibrations
Low maintenance cost
Cylindrical outside ring shape
C3 radial clearance
Lubrication groove and 3 lubrication holes on the outside diameter
1-piece brass cage, roller guided between 2 inner ring flanges, cage is guided on the rollers and asymmetrical roller position

Specifications

Bearing Material:	High Carbon Chromium Steel
Bore Diameter:	190 mm
Cage Material:	Brass
Country of Origin:	CN
Load Capacity:	1810 kN Dynamic/2540 kN Static
Maximum Speed:	880 rpm Grease/1200 rpm Oil
Number of Rows:	2
Outside Diameter:	400 mm
Series:	22300
Temperature Rating:	150 deg C
Width:	132 mm
