22CD260A103 AB

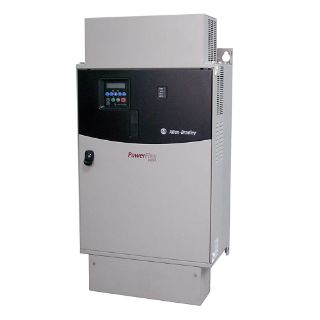

Picture of 22CD260A103 AB
Actual Product May Vary From Image

Product Details

Manufacturer:
Allen-Bradley
Manufacturer part number:
22C-D260A103
CBT Inventory
0
Vendor Inventory
Please login to see accurate availability
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$27,944.95 / EA
You do not meet the requirements to purchase this product. Please contact your sales person.

Description

Type

AC Drive

Description

AC Drive,132 kW (200 HP),480V AC Input,3 PH,50 60 Hz,260 A Output,IP30,UL NEMA Type 1,Panel Mounting,With PID,PIP Algorithm AndFire System Tie,In, Frame G, 0.98 PF,Integral Keypad And Led Display, RS485, Fixed Terminal Block Connections.

Features

PID-PIP Algor; Fire Sys Tie-in

Specifications

Brake IGBT:Not Included
Connection:Fixed Terminal Block
Control:RS485
Country of Origin:TW
Enclosure:IP30,UL-NEMA Type 1
Frame Size:Frame G
Frequency Rating:50-60
Input Voltage Rating:480V AC
Mounting:Panel Mount
Output Current Rating:260 A
Power Factor:0.98
Power Rating:132 kW (200 Hp)
User Interface:Integral Keypad; LED Display

Resources

Spec Sheet

Products Specifications

Brand Name
Allen-Bradley
Horsepower
200 HP
Output
260 Amps
Phase
3
Type
AC Drive
Voltage Rating
480 VAC
