22XXH300E BRN

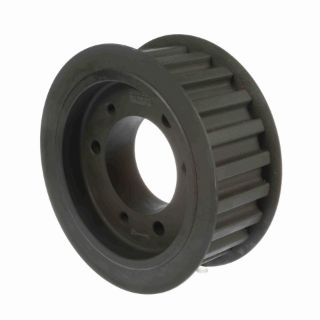

Browning® Gearbelt® 3515152 Solid Type DF Synchronous Timing Pulley With Flange, 7/8 to 3-1/2 in QD® Bore, 8.633 in OD, 22 Grooves, 8.753 in Dia Pitch, 3-11/16 in W Face
Manufacturer: Regal Rexnord
Manufacturer part number: 3515152
Availability: Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
Price on Request

Product Details

Brand Name

Browning®

Type

Solid Type DF

Description

Synchronous belt drives help reduce the problems of slippage, belt stretch, lubrication and metal to metal contact. They provide superior performance because power is transmitted by positive engagement of belt teeth rather than by friction, as in conventional belt drives.
Browning® Gearbelt® Synchronous Timing Pulley, Solid Type DF, QD® Bore, 7/8 to 3-1/2 in Bore Dia, 8.633 in Outside Dia, 8.753 in, 22 Grooves, 1-1/4 in Pitch, 3-11/16 in Face Width, 9-1/2 in Flange Dia, E Bushing, 3-3/4 in Overall Length, For Use With: 3 in W Type XXH300 Belt

Application

Agriculture, Forestry, Packaging Machinery and Unit Handling Industries

Features

  • Constant speed, no slip, no creep, minimum backlash, because of the positive grip of the belt teeth with pulley grooves
  • High modulus strength member, needs minimum take-up
  • Freedom from initial belt tension, reduces bearing loads, increases life
  • Compact design Gearbelt® belts permit smaller pulleys, shorter centers and narrow belts
  • Lightweight, high horsepower-to-weight ratio makes Gearbelt® drives ideal for any application where weight is an important factor
  • Less heat, because Gearbelt® drives generate virtually no friction
  • No lubrication required
  • Wide load capacity range
  • Wide belt speed range

Specifications

Bore Diameter:7/8 to 3-1/2 in
Bore Type:QD®
Bushing Type:E
Country of Origin:US
Face Width:3-11/16 in
Flange Diameter:9-1/2 in
Number of Grooves:22
Outside Diameter:8.633 in
Overall Length:3-3/4 in
Pitch:1-1/4 in
Pitch Diameter:8.753 in
Suitable For Use With:3 in W Type XXH300 Belt
