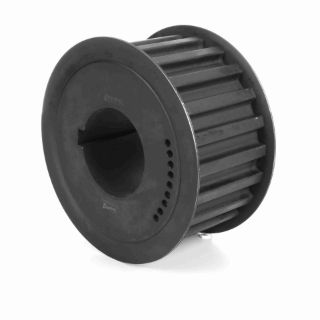

Actual Product May Vary From Image

22XXHR400 BRN

Name: 22XXHR400 BRN
Brand: Regal Rexnord
SKU: 22XXHR400 BRN
Availability: OutOfStock

Browning® Gearbelt® 1058312 Type 11 Synchronous Timing Pulley With Flange, 1-3/8 to 3-5/8 in Split Taper Bore, 8.633 in OD, 22 Grooves, 8.753 in Dia Pitch, 4-3/4 in W Face

Manufacturer: Regal Rexnord

Manufacturer part number: 1058312

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Browning®

Type

Type 11

Description

Synchronous belt drives help reduce the problems of slippage, belt stretch, lubrication and metal to metal contact. They provide superior performance because power is transmitted by positive engagement of belt teeth rather than by friction, as in conventional belt drives.

Browning® Gearbelt® Synchronous Timing Pulley, Type 11, Split Taper Bore, 1-3/8 to 3-5/8 in Bore Dia, 8.633 in Outside Dia, 8.753 in, 22 Grooves, 1-1/4 in Pitch, 4-3/4 in Face Width, 9-1/2 in Flange Dia, 5-3/8 in Hub Dia, 1/8 in Hub Projection, R2 Bushing, 5-5/32 in Overall Length, For Use With: 4 in W Type XXH400 Belt

Application

Agriculture, Forestry, Packaging Machinery and Unit Handling Industries

Features

Constant speed, no slip, no creep, minimum backlash, because of the positive grip of the belt teeth with pulley grooves
High modulus strength member, needs minimum take-up
Freedom from initial belt tension, reduces bearing loads, increases life
Compact design Gearbelt® belts permit smaller pulleys, shorter centers and narrow belts
Lightweight, high horsepower-to-weight ratio makes Gearbelt® drives ideal for any application where weight is an important factor
Less heat, because Gearbelt® drives generate virtually no friction
No lubrication required
Wide load capacity range
Wide belt speed range

Specifications

Bore Diameter:	1-3/8 to 3-5/8 in
Bore Type:	Split Taper
Bushing Type:	R2
Country of Origin:	MX
Face Width:	4-3/4 in
Flange Diameter:	9-1/2 in
Hub Diameter:	5-3/8 in
Hub Projection:	1/8 in
Number of Grooves:	22
Outside Diameter:	8.633 in
Overall Length:	5-5/32 in
Pitch:	1-1/4 in
Pitch Diameter:	8.753 in
Suitable For Use With:	4 in W Type XXH400 Belt
