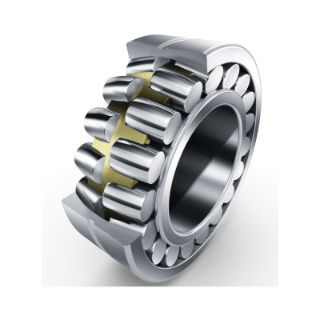

Actual Product May Vary From Image

23038-E1A-XL-M-C3 FAG

Name: 23038-E1A-XL-M-C3 FAG
Brand: INA
SKU: 23038-E1A-XL-M-C3 FAG
Price: 2,335.65 USD
Availability: OutOfStock

FAG 23038-E1A-XL-M-C3 Cylindrical Bore Spherical Roller Bearing, 190 mm Dia Bore, 290 mm OD, 2 Rows, 75 mm W, 1550 kN Load

Manufacturer: INA

Manufacturer part number: 23038-E1A-XL-M-C3

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$2,335.65

Qty:

Product Details

Brand Name

FAG

Type

Cylindrical Bore

Description

Spherical roller bearings are a special rolling bearing design whose inner ring runs inside the outer ring on two rows of rollers. The bearings have an angular adjustment of up to 2 deg and are not only designed for high load carrying capacity but can also compensate misalignments.

FAG Spherical Roller Bearing, Cylindrical Bore, Series: 230-E1A, 190 mm Bore, 290 mm OD, 2 Rows, 75 mm Width, Open Closure, 1550 kN Load, Solid Brass Cage, 2490 rpm Maximum, -30 to 200 deg C

Application

Dryer Rolls and Calendars, Mining Machinery, Conveyor Belts, Crushers, Vibrating Screens, Vertical Mills, Roller Presses, Continuous Casting Plant, Passenger Elevators, Marine Propulsion Systems

Features

Spherical roller bearings are suitable where rearing arrangements are subjected to high and very high radial loads
Relatively high axial loads occur on one or both sides, in addition to high radial forces
Dynamic or static misalignments of the shaft relative to the housing, or deflections of the shaft, must be freely compensated by the bearing
High shock type loads must be supported dynamically
Locating bearings with a very high load carrying capacity are required
One brass double comb cage, guided by rollers, inner ring with two lateral retaining ribs
X-life design
C3 radial internal clearance
Without central rib on inner ring
1080 kN dynamic/1550 kN static

Specifications

Bore Diameter:	190 mm
Cage Material:	Solid Brass
Closure Type:	Open
Country of Origin:	DE
Load Capacity:	1550 kN
Maximum Speed:	2490 rpm
Number of Rows:	2
Outside Diameter:	290 mm
Series:	230-E1A
Temperature Rating:	-30 to 200 deg C
Width:	75 mm
