23056-BEA-XL-MB1-C3 FAG

Name: 23056-BEA-XL-MB1-C3 FAG
Brand: INA
SKU: 23056-BEA-XL-MB1-C3 FAG
Price: 6,566.21 USD
Availability: OutOfStock

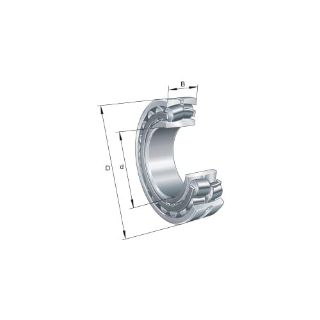

FAG 23056-E1A-MB1-C3 230..-E1 Cylindrical Bore Spherical Roller Bearing, 280 mm Dia Bore, 420 mm OD, 2 Rows, 106 mm W, 1780000 N Dynamic/2850000 N Static Load

Manufacturer: INA

Manufacturer part number: 23056-E1A-MB1-C3

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro
0	0
Loading...

$6,566.21

Qty:

Product Details

Brand Name

FAG

Type

Cylindrical Bore

Description

FAG spherical roller bearings have proved highly effective wherever high loads are present and there is a need to compensate for shaft deflections and/or misalignment of bearing seats.

FAG Spherical Roller Bearing, Cylindrical Bore, Series: 230..-E1, 280 mm Bore Dia, 420 mm Outside Dia, 2 Rows, 106 mm W, Open Closure, 1780000 N Dynamic/2850000 N Static, Steel Bearing, Brass Cage, 1740 rpm Maximum, -30 to 200 deg C

Application

Vibrating Screens, Continuous Casting Machines, Wind Turbines and Paper Production

Standards

Meets to DIN 635-2

Features

Higher performance bearing arrangements
Lower operating costs
For oscillating load with restricted diameter tolerances radial internal clearance C4
C3 radial internal clearance

Specifications

Bearing Material:	Steel
Bore Diameter:	280 mm
Cage Material:	Brass
Closure Type:	Open
Load Capacity:	1780000 N Dynamic/2850000 N Static
Maximum Speed:	1740 rpm
Number of Rows:	2
Outside Diameter:	420 mm
Series:	230..-E1
Temperature Rating:	-30 to 200 deg C
Width:	106 mm
