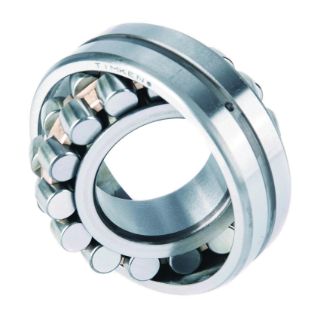

Actual Product May Vary From Image

23056EMBW507C08C2 TKN

Name: 23056EMBW507C08C2 TKN
Brand: Timken
SKU: 23056EMBW507C08C2 TKN
Availability: OutOfStock

Timken Spherical Roller Bearing

Manufacturer: Timken

Manufacturer part number: 23056EMBW507C08C2

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Timken

Description

Timken® high performance spherical roller bearings feature industry-leading load ratings and thermal reference speeds. With one of the broadest offerings in the industry, Timken® high performance spherical roller bearings handle high radial loads, as well as axial loads in both directions. Up to 2.5° of shaft misalignment can be accommodated.

Timken Spherical Roller Bearing | 280 mm 11 in Bore | 420 mm 16.5 in OD

Features

Enhanced surface finishes
Optimized internal geometry
Industry-leading load ratings
One-piece, machined-brass, land riding, finger-type cage |(W507) Bearing inspected to certain quality control requirements
Standard lubrication holes in and groove in outer ring
Tapped lifting holes in face of outer ring to facilitate lifting and handling |(C08) Inner and outer ring with P5 running accuracy and high points of eccentricity marked

Specifications

Bearing Material:	Steel
Bearing Type:	Spherical Roller Bearings
Bore Type:	Straight
Cage (Retainer) Type:	Design Style - EMB
Cage Material:	Brass Cage
Component (I/R; O/R assembly):	Assembly
Dynamic Load Rating:	410000
Fillet Radius - Inch:	0.12
Fillet Radius - Millimeter:	3
Inner Race Width (in):	4.1732
Inner Race Width (mm):	106
Internal Clearance:	C2
Load Rating UOM:	LB
Lubrication Hole/Groove:	yes
Manufacturer Produt Page Link:	https://www.timken.com/products/timken-engineered-bearings/spherical/
Material - Rolling Elements:	Roller
Maximum Operating RPM (Grease):	1100
Maximum Operating RPM (Oil):	1300
Outer Diameter (in):	16.535
Outer Diameter (mm):	420
Outer Diameter Type:	Straight
Outer Race Width (in):	4.1732
Outer Race Width (mm):	106
Overall Width (in):	4.173
Overall Width (mm):	106
Precision class:	P0
Relubricatable:	yes
Rolling Element:	Spherical
Row Type:	Double
Self Aligning:	Yes
Series:	230
Shaft Size (in):	11.024
Shaft Size (mm):	280
Snap Ring:	no
Static Load Rating:	631000
