2307-2RS-TVH-C3 FAG

Name: 2307-2RS-TVH-C3 FAG
Brand: INA
SKU: 2307-2RS-TVH-C3 FAG
Availability: OutOfStock

FAG 2307-2RS-TVH-C3 Cylindrical Bore Self Aligning Ball Bearing, 35 mm Dia Bore, 80 mm OD, 31 mm W, 25500 N Load

Manufacturer: INA

Manufacturer part number: 2307-2RS-TVH-C3

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

FAG

Type

Cylindrical Bore

Description

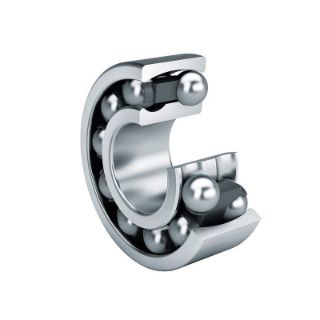

Self aligning ball bearings are double-row, self-retaining units comprising outer rings with a concave raceway, inner rings with a cylindrical or tapered bore and ball and cage assemblies. The bearings are available in open and sealed designs.

FAG Self Aligning Ball Bearing, Cylindrical Bore, 35 mm Bore, 80 mm OD, 31 mm Width, Double Seal Closure, 25500 N Load, Rubber Seal, Polyamide 66 Cage, 5200 rpm Maximum, -30 to 120 deg C

Standards

DIN 630

Features

25500 N dynamic/7900 N static load

Specifications

Bore Diameter:	35 mm
Cage Material:	Polyamide 66
Closure Type:	Double Seal
Load Capacity:	25500 N
Maximum Speed:	5200 rpm
Outside Diameter:	80 mm
Seal Material:	Rubber
Temperature Rating:	-30 to 120 deg C
Width:	31 mm
