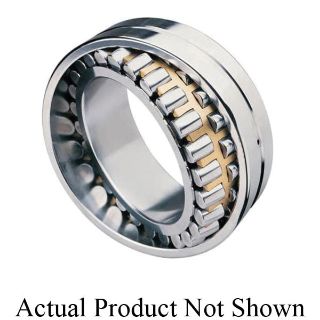

Actual Product May Vary From Image

23152EMBW507C08C7 TKN

Name: 23152EMBW507C08C7 TKN
Brand: Timken
SKU: 23152EMBW507C08C7 TKN
Availability: OutOfStock

Timken® 23152EMBW507C08C7 Cylindrical Bore Type EMB Spherical Roller Bearing, 260 mm Dia Bore, 440 mm OD, 2 Rows, 144 mm W, 2680000 N Dynamic/3930000 N Static Load

Manufacturer: Timken

Manufacturer part number: 23152EMBW507C08C7

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Timken®

Type

Cylindrical Bore Type EMB

Description

Misalignment, contamination, high-temperatures, even extreme speeds or critical stresses can present extra challenges when managing high radial loads. Timken® spherical roller bearings can handle it all, with innovations designed to extend bearing life and boost reliability. Timken® spherical roller bearings with hardened steel cages deliver greater fatigue strength, increased wear-resistance and tougher protection against shock and acceleration.

Timken® Spherical Roller Bearing, Cylindrical Bore Type EMB, Series: 231, 260 mm Bore Dia, 440 mm Outside Dia, 2 Rows, 144 mm W, Open Closure, 2680000 N Dynamic/3930000 N Static, Chrome Steel Bearing, Brass Cage, 830 rpm Grease/930 rpm Oil Maximum, -65 to 392 deg F, Uncoated

Application

Continuous Casters, Metal Mills, Crushers, Vibrating Screens, Excavation/Loading, Miners, Bulk Material Handling, Conveying, Oil and Gas, Mud Pumps and Pulp and Paper

Features

Run at consistently lower temperatures than same-size competitive bearings for greater reliability
Optimized internal geometries deliver the highest load and speed ratings in the industry
Spherical bearings are designed to manage high radial loads even when misalignment, poor lubrication, contamination, extreme speeds or critical application stresses are present
High-performance one-piece inner-ring, piloted, machined-brass cage
C7 radial internal clearance

Specifications

Bearing Material:	Chrome Steel
Bore Diameter:	260 mm
Cage Material:	Brass
Closure Type:	Open
Finish:	Uncoated
Load Capacity:	2680000 N Dynamic/3930000 N Static
Maximum Speed:	830 rpm Grease/930 rpm Oil
Number of Rows:	2
Outside Diameter:	440 mm
Series:	231
Temperature Rating:	-65 to 392 deg F
Width:	144 mm
