Actual Product May Vary From Image

23156EJW45AW46W848 TKN

Name: 23156EJW45AW46W848 TKN
Brand: Timken
SKU: 23156EJW45AW46W848 TKN
Availability: OutOfStock

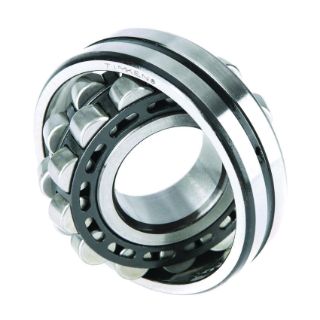

Timken Spherical Roller Bearing

Manufacturer: Timken

Manufacturer part number: 23156EJW45AW46W848

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Timken

Description

Timken® high performance spherical roller bearings feature industry-leading load ratings and thermal reference speeds. With one of the broadest offerings in the industry, Timken® high performance spherical roller bearings handle high radial loads, as well as axial loads in both directions. Up to 2.5° of shaft misalignment can be accommodated.

Timken Spherical Roller Bearing | 280 mm 11 in Bore | 460 mm 18.1 in OD

Features

Enhanced surface finishes
Optimized internal geometry
Industry-leading load ratings
Nitride hardened steel cage with face slots |(W45A) Tapped lifting holes in face of outer ring to facilitate lifting and handling |(W46) Outer ring has an undersized outside diameter |(W848) Special features

Specifications

Bearing Material:	Steel
Bearing Type:	Spherical Roller Bearings
Bore Type:	Straight
Cage (Retainer) Type:	Design Style - EJ
Cage Material:	Steel Cage
Component (I/R; O/R assembly):	Assembly
Dynamic Load Rating:	626000
Fillet Radius - Inch:	0.16
Fillet Radius - Millimeter:	4
Inner Race Width (in):	5.748
Inner Race Width (mm):	146
Internal Clearance:	C0
Load Rating UOM:	LB
Lubrication Hole/Groove:	no
Manufacturer Produt Page Link:	https://www.timken.com/products/timken-engineered-bearings/spherical/
Material - Rolling Elements:	Roller
Maximum Operating RPM (Grease):	770
Maximum Operating RPM (Oil):	870
Outer Diameter (in):	18.11
Outer Diameter (mm):	460
Outer Diameter Type:	Straight
Outer Race Width (in):	5.748
Outer Race Width (mm):	146
Overall Width (in):	5.748
Overall Width (mm):	146
Precision class:	P0
Relubricatable:	no
Rolling Element:	Spherical
Row Type:	Double
Self Aligning:	Yes
Series:	231
Shaft Size (in):	11.024
Shaft Size (mm):	280
Snap Ring:	no
Static Load Rating:	937000
