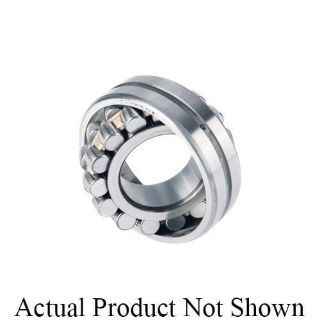

Actual Product May Vary From Image

23192XYMBSSW205AL020 TKN

Name: 23192XYMBSSW205AL020 TKN
Brand: Timken
SKU: 23192XYMBSSW205AL020 TKN
Price: 109,325.13 USD
Availability: OutOfStock

Timken Spherical Roller Bearing

Manufacturer: Timken

Manufacturer part number: 23192XYMBSSW205AL020

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$109,325.13

Qty:

Product Details

Brand Name

Timken

Description

Timken® high performance spherical roller bearings feature industry-leading load ratings and thermal reference speeds. With one of the broadest offerings in the industry, Timken® high performance spherical roller bearings handle high radial loads, as well as axial loads in both directions. Up to 2.5° of shaft misalignment can be accommodated.

Timken Spherical Roller Bearing | 460 mm 18.1 in Bore | 760 mm 29.9 in OD

Features

Enhanced surface finishes
Optimized internal geometry
Industry-leading load ratings
One-piece, machined-brass, roller riding, finger-type cage
(W20) Outer ring has lubrication holes

Specifications

Bearing Material:	Steel
Bearing Type:	Spherical Roller Bearings
Bore Type:	Straight
Cage (Retainer) Type:	Design Style - YMB
Cage Material:	Brass Cage
Component (I/R; O/R assembly):	Assembly
Dynamic Load Rating:	1460000
Fillet Radius - Inch:	0.197
Inner Race Width (in):	9.4488
Inner Race Width (mm):	240
Internal Clearance:	C0
Load Rating UOM:	LB
Lubrication Hole/Groove:	yes
Manufacturer Produt Page Link:	https://www.timken.com/products/timken-engineered-bearings/spherical/
Material - Rolling Elements:	Roller
Maximum Operating RPM (Grease):	390
Maximum Operating RPM (Oil):	430
Outer Diameter (in):	29.921
Outer Diameter (mm):	760
Outer Diameter Type:	Straight
Outer Race Width (in):	9.4488
Outer Race Width (mm):	240
Overall Width (in):	9.449
Overall Width (mm):	240
Precision class:	P0
Relubricatable:	yes
Rolling Element:	Spherical
Row Type:	Double
Self Aligning:	Yes
Series:	231
Shaft Size (in):	18.11
Shaft Size (mm):	460
Snap Ring:	no
Static Load Rating:	2500000
