23192XYMBSSW206AL020 TKN

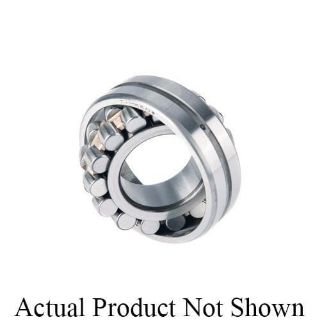

Timken Spherical Roller Bearing
Manufacturer: Timken
Manufacturer part number: 23192XYMBSSW206AL020
Availability: Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
Price on Request

Product Details

Brand Name

Timken

Description

Timken® high performance spherical roller bearings feature industry-leading load ratings and thermal reference speeds. With one of the broadest offerings in the industry, Timken® high performance spherical roller bearings handle high radial loads, as well as axial loads in both directions. Up to 2.5° of shaft misalignment can be accommodated.
Timken Spherical Roller Bearing | 460 mm 18.1 in Bore | 760 mm 29.9 in OD

Features

  • Enhanced surface finishes
  • Optimized internal geometry
  • Industry-leading load ratings
  • Nitride hardened steel cage with face slots

Specifications

Bearing Material:Steel
Bearing Type:Spherical Roller Bearings
Bore Type:Straight
Cage (Retainer) Type:Design Style - YMB
Cage Material:Brass Cage
Component (I/R; O/R assembly):Assembly
Dynamic Load Rating:1460000
Inner Race Width (in):9.4488
Inner Race Width (mm):240
Internal Clearance:C0
Load Rating UOM:LB
Lubrication Hole/Groove:no
Manufacturer Produt Page Link:https://www.timken.com/products/timken-engineered-bearings/spherical/
Material - Rolling Elements:Roller
Outer Diameter (in):29.921
Outer Diameter (mm):760
Outer Diameter Type:Straight
Outer Race Width (in):9.4488
Outer Race Width (mm):240
Overall Width (in):9.449
Overall Width (mm):240
Precision class:P0
Relubricatable:no
Rolling Element:Spherical
Row Type:Double
Self Aligning:yes
Series:231
Shaft Size (in):18.11
Shaft Size (mm):460
Snap Ring:no
Static Load Rating:2500000
