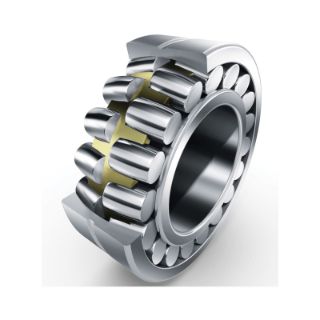

Actual Product May Vary From Image

23260-K-MB1-T52BW FAG

Name: 23260-K-MB1-T52BW FAG
Brand: INA
SKU: 23260-K-MB1-T52BW FAG
Availability: OutOfStock

FAG 23260-K-MB1-T52BW Tapered Bore Spherical Roller Bearing, 300 mm Dia Bore, 540 mm OD, 2 Rows, 192 mm W

Manufacturer: INA

Manufacturer part number: 23260-K-MB1-T52BW

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

FAG

Type

Tapered Bore

Description

Spherical roller bearings are a special rolling bearing design whose inner ring runs inside the outer ring on two rows of rollers. The bearings have an angular adjustment of up to 2 deg and are not only designed for high load carrying capacity but can also compensate misalignments.

FAG Spherical Roller Bearing, Tapered Bore, Series: 232, 300 mm Bore, 540 mm OD, 2 Rows, 192 mm Width, Open Closure, Solid Brass Cage, -30 to 200 deg C

Features

Spherical roller bearings are suitable where rearing arrangements are subjected to high and very high radial loads
Relatively high axial loads occur on one or both sides, in addition to high radial forces
Dynamic or static misalignments of the shaft relative to the housing, or deflections of the shaft, must be freely compensated by the bearing
High shock type loads must be supported dynamically
Locating bearings with a very high load carrying capacity are required
1:12 tapered bore

Specifications

Bore Diameter:	300 mm
Cage Material:	Solid Brass
Closure Type:	Open
Country of Origin:	US
Number of Rows:	2
Outside Diameter:	540 mm
Series:	232
Temperature Rating:	-30 to 200 deg C
Width:	192 mm
