234413-M-SP FAG

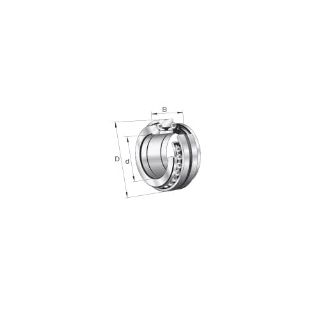

Double direction axial angular contact ball bearings are precision bearings without self-retention and with restricted tolerances to class SP. They comprise solid shaft locating washers, a spacer ring, a housing locating washer and ball and cage assemblies with solid brass cages. The bearing parts are matched to each other and can be fitted separately, but must not be interchanged with parts from bearings of the same size.

FAG Axial Angular Contact Ball Bearing, Series: 2344, 65 mm Bore Dia, 100 mm Outside Dia, 2 Rows, 44 mm W, 60 deg Contact, Open Closure, 38500 N Dynamic/111000 N Static/10000 N Fatigue, Steel Bearing, Brass Cage, 7500 rpm Maximum, -30 to 150 deg C
