239/710YMBW47W534 TKN

Name: 239/710YMBW47W534 TKN
Brand: Timken
SKU: 239/710YMBW47W534 TKN
Availability: OutOfStock

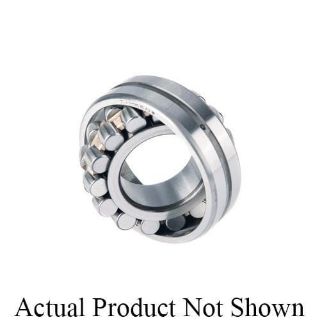

Timken Spherical Roller Bearing

Manufacturer: Timken

Manufacturer part number: 239/710YMBW47W534

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Timken

Description

Timken® high performance spherical roller bearings feature industry-leading load ratings and thermal reference speeds. With one of the broadest offerings in the industry, Timken® high performance spherical roller bearings handle high radial loads, as well as axial loads in both directions. Up to 2.5° of shaft misalignment can be accommodated.

Timken Spherical Roller Bearing | 710 mm 28 in Bore | 950 mm 37.4 in OD

Features

Enhanced surface finishes
Optimized internal geometry
Industry-leading load ratings
Nitride hardened steel cage with face slots

Specifications

Bearing Material:	Steel
Bearing Type:	Spherical Roller Bearings
Bore Type:	Straight
Cage (Retainer) Type:	Design Style - YMB
Cage Material:	Brass Cage
Component (I/R; O/R assembly):	Assembly
Dynamic Load Rating:	1250000
Fillet Radius - Inch:	0.197
Inner Race Width (in):	7.0866
Inner Race Width (mm):	180
Internal Clearance:	C0
Load Rating UOM:	LB
Lubrication Hole/Groove:	no
Manufacturer Produt Page Link:	https://www.timken.com/products/timken-engineered-bearings/spherical/
Material - Rolling Elements:	Roller
Maximum Operating RPM (Grease):	330
Maximum Operating RPM (Oil):	380
Outer Diameter (in):	37.402
Outer Diameter (mm):	950
Outer Diameter Type:	Straight
Outer Race Width (in):	7.0866
Outer Race Width (mm):	180
Overall Width (in):	7.087
Overall Width (mm):	180
Precision class:	P0
Relubricatable:	no
Rolling Element:	Spherical
Row Type:	Double
Self Aligning:	yes
Series:	239
Shaft Size (in):	27.953
Shaft Size (mm):	710
Snap Ring:	no
Static Load Rating:	2780000
