Actual Product May Vary From Image

23S15H DOD

Name: 23S15H DOD
Brand: Dodge
SKU: 23S15H DOD
Price: 1,401.98 USD
Availability: OutOfStock

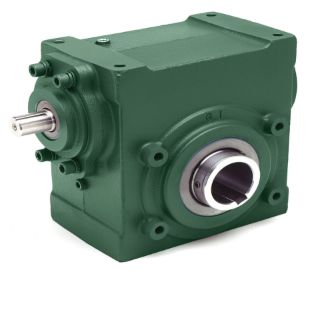

23S15H TIGEAR-2 REDUCER

Manufacturer: Dodge

Manufacturer part number: 23S15H

Estimated dates are contingent upon manufacturer stock.

Please login to see accurate availability

$1,401.98

Qty:

Product Details

Base to Output Center Height:	2.5000
Base to Output Center Height (Unit):	INCH
Bore Diameter (Output):	1.4380
Bore Diameter (Output) (Unit):	INCH
Bore Length:	6.6200
Bore Length (Unit):	INCH
Case Size:	23
Center Distance:	2.3100
Center Distance (Unit):	INCH
Horsepower Rating Input:	2.5700
Horsepower Rating Input (Unit):	HORSEPOWER
Horsepower Rating Output:	2.2200
Horsepower Rating Output (Unit):	HORSEPOWER
Housing Material:	Cast Iron
Input Style:	Separate
Lubrication:	PAG, Standard Temperature
Mounting Bolt Pattern Length:	5.0000
Mounting Bolt Pattern Length (Unit):	INCH
Mounting Bolt Pattern Width:	2.8800
Mounting Bolt Pattern Width (Unit):	INCH
Nominal Ratio:	15.0000
Output Shaft:	Hollow
Output Style:	Hollow
Overhung Load:	1610
Overhung Load (Unit):	POUND_FORCE
Paint Type:	Standard
Rated Torque Output:	1199
Rated Torque Output (Unit):	INCH_POUND
Seal Type:	Single-Lip Contact
Shaft Diameter Input:	0.8750
Shaft Diameter Input (Unit):	INCH
Shaft Length Input:	1.1700
Shaft Length Input (Unit):	INCH
Suitable For Washdown:	No
Thermal Horsepower Rating:	3.3000
Thermal Horsepower Rating (Unit):	HORSEPOWER
