240/600-E1A-MB1 FAG

Name: 240/600-E1A-MB1 FAG
Brand: INA
SKU: 240/600-E1A-MB1 FAG
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

INA

Manufacturer part number:

240/600-E1A-MB1

CBT Inventory

Vendor Inventory

Availability:

Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

FAG

Type

Cylindrical Bore

Description

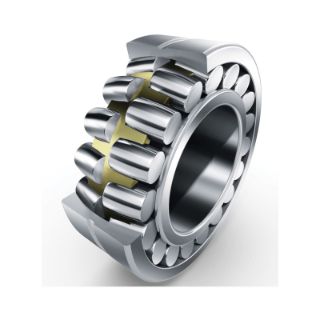

Spherical roller bearings are a special rolling bearing design whose inner ring runs inside the outer ring on two rows of rollers. The bearings have an angular adjustment of up to 2 deg and are not only designed for high load carrying capacity but can also compensate misalignments.

FAG Spherical Roller Bearing, Cylindrical Bore, Series: 240-E1A, 600 mm Bore, 870 mm OD, 2 Rows, 272 mm Width, Open Closure, 16600000 N Load, Solid Brass Cage, 630 rpm Maximum, -30 to 200 deg C

Application

Vibrating Screen, Continuous Casting Machines, Wind Turbine, Paper Production, Industrial Gearboxes and Marine Propulsion Systems

Features

Spherical roller bearings are suitable where rearing arrangements are subjected to high and very high radial loads
Relatively high axial loads occur on one or both sides, in addition to high radial forces
Dynamic or static misalignments of the shaft relative to the housing, or deflections of the shaft, must be freely compensated by the bearing
High shock type loads must be supported dynamically
Locating bearings with a very high load carrying capacity are required
Increased capacity design
Solid brass cage, guided on inner ring rib
8300000 N dynamic/16600000 N static

Specifications

Bore Diameter:	600 mm
Cage Material:	Solid Brass
Closure Type:	Open
Country of Origin:	DE
Load Capacity:	16600000 N
Maximum Speed:	630 rpm
Number of Rows:	2
Outside Diameter:	870 mm
Series:	240-E1A
Temperature Rating:	-30 to 200 deg C
Width:	272 mm
