24096 KYMBW33W45 TKN

Name: 24096 KYMBW33W45 TKN
Brand: Timken
SKU: 24096 KYMBW33W45 TKN
Availability: OutOfStock

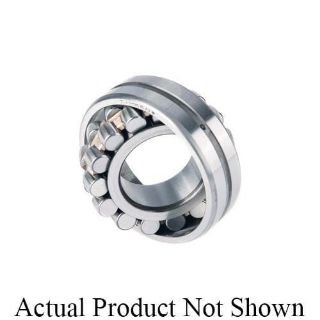

Actual Product May Vary From Image

Product Details

Manufacturer:

Timken

Manufacturer part number:

24096KYMBW33W45

CBT Inventory

Vendor Inventory

Availability:

Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Timken®

Type

Tapered Bore

Description

Timken® high performance Spherical Roller Bearings feature industry leading load ratings and thermal reference speeds. With one of the broadest offerings in the industry, Timken® high performance Spherical Roller Bearings handle high radial loads, as well as axial loads in both directions. Up to 2.5 deg of shaft misalignment can be accommodated.

Timken®, 24096KYMBW33W45, Spherical Roller Bearing, Tapered Bore, Series: 240, 18.898 in Bore, 27.559 in OD, 2 Rows, 8.583 in Width, Open Closure, 1230000 lb Dynamic/2450000 lb Static Load, Steel Bearing, Brass Cage, 370 rpm Grease/410 rpm Oil Maximum, 392 deg F

Standards

Features

Enhanced surface finishes
Optimized internal geometry
One-piece, machined-brass, roller riding, finger-type cage
Run at consistently lower temperatures than same size competitive bearings for greater reliability
Multiple cage designs including a wide range of both steel and brass options help reduce stress at high shock loads or speeds and provide strong contaminant purge
Optimized internal geometries deliver the highest load and speed ratings in the industry
Nitride hardened steel cage with face slots

Specifications

Bearing Material:	Steel
Bore Diameter:	18.898 in
Cage Material:	Brass
Closure Type:	Open
Load Capacity:	1230000 lb Dynamic/2450000 lb Static
Maximum Speed:	370 rpm Grease/410 rpm Oil
Number of Rows:	2
Outside Diameter:	27.559 in
Series:	240
Temperature Rating:	392 deg F
Width:	8.583 in
