Actual Product May Vary From Image

2410-B LEV

Name: 2410-B LEV
Brand: Leviton Manufacturing
SKU: 2410-B LEV
Availability: OutOfStock

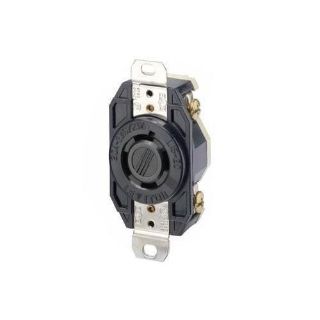

Leviton® V-0-Max™ 2410-B Grounding Locking Receptacle, 125/250 VAC, 20 A, 3 Poles, 4 Wires, Black

Manufacturer: Leviton Manufacturing

Manufacturer part number: 2410-B

Availability: Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Leviton®

Type

Grounding

Description

Leviton® V-0-Max™ Locking Receptacle, Grounding, 125/250 VAC, 20 A, 1/2 hp, 3 Pole, 4 Wires, NEMA L14-20R NEMA Rating, Industrial Grade, -40 to 60 deg C, Back/Side Wire Terminal, Polybutylene Terephthalate, Black, 3.63 in H x 1.69 in W x 1.31 in D Dimensions

Application

Commercial Applications

Standards

Features

1-piece brass contact provides longer life and continuous conductivity vs. multi-piece riveted styles
Extra thick, corrosion resistant nickel plated brass strap
Amperage, voltage, NEMA configuration and manufacturer molded into face lasts longer than stamping and makes for fast, easy identification and replacement
Terminal identification molded into the body lasts longer than stamping
Nickel plated brass clamp type terminals support back and side wiring and resist corrosion
Color coded voltage ID ring on face for quick visual identification
Box mounting
14 to 8 AWG terminal accommodation
Flush mount

Specifications

Amperage Rating:	20 A
Color:	Black
Country of Origin:	US
Dimensions:	3.63 in H x 1.69 in W x 1.31 in D
Grade:	Industrial
Horsepower:	1/2 hp
Material:	Polybutylene Terephthalate
NEMA Rating:	NEMA L14-20R
Number of Poles:	3
Number of Wires:	4
Temperature Rating:	-40 to 60 deg C
Terminal Type:	Back/Side Wire
Voltage Rating:	125/250 VAC
